Carr Lane, Pull Latch Action Toggle Clamp, Holding Capacity (lbf): 154
Carr Lane, Pull Latch Action Toggle Clamp, Holding Capacity (lbf): 154
SKU: CLM-150-PAC
Brand: Carr Lane
Pull Latch Action Toggle Clamp
$9.06
Additional Information

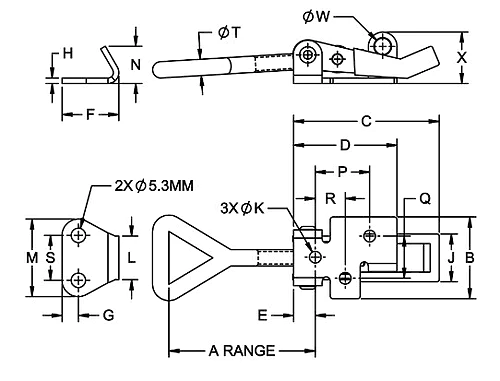

- Holding Capacity (lbf): 154
- A Range Min (mm): 33
- A Range Max (mm): 63
- B (mm): 30
- C (mm): 55
- D (mm): 38
- E (mm): 8
- F (mm): 22
- G (mm): 6
- H (mm): 2
- J (mm): 16
- K Dia (mm): 4.3
- L (mm): 16
- M (mm): 28.5
- N (mm): 13.5
- P (mm): 20
- Q (mm): 16
- R (mm): 11
- S (mm): 16.5
- T Dia (mm): 5.2
- W Dia (mm): 6
- X (mm): 19
- Material: HR Coil (Clamp & Latch)
- Finish: Zinc Plated
A medium-duty Latch clamp well suited to installation on equipment, tools, or machinery. Its easy adjustment is ideal for use as a door hatch closure or to align and retain any two items. Supplied with the latch plate, it also features the ability to be secured with a padlock or pin to prevent unintended release. For Heavy-Duty applications see other Latch Clamps. Available in three sizes.
