Name: Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 850, Open Arm, Flanged Base, Stainless Steel
Brand: Carr Lane
SKU: CL-550-HTC-S
Availability: InStock

Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 850, Open Arm, Flanged Base, Stainless Steel

SKU: CL-550-HTC-S

Brand: Carr Lane

View Specs

Horizontal Toggle Clamp

$82.09

Additional Information

Clamping Force (lbf): 850
Arm Type: Open Arm
Base Type: Flanged Base
Style: Stainless Steel

Material: 300-Series Stainless (Clamp Body),
Finish: N/A

Steel clamps are supplied with 3/8-16 short flat-cushion spindle CL-38212-FC and (2) CL-3811-TW flanged washers. Stainless steel clamps are supplied with 3/8-16 short stainless hex-head spindle CL-38212-SA-S and (2) CL-3811-TW-S stainless flanged washers. For alternative clamping spindles, Contact Us.

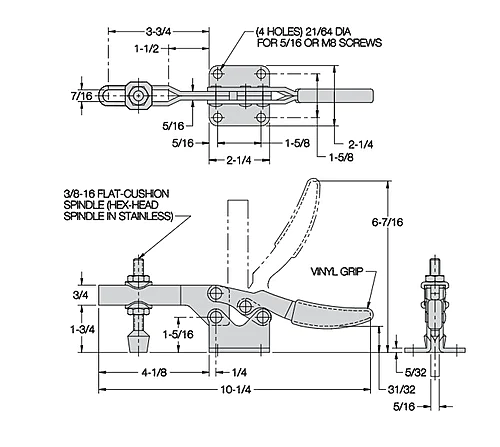

Heavy-duty horizontal-handle clamp. Arm opens 90° while handle moves 55°. Open arm provides adjustable spindle location. Choice of flanged base or straight base. Available in in steel or stainless steel. Optionally available with a safety-lock feature, and in an automatically adjusting version (see Related Products below). 750 lbs holding capacity.
