Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 250, Open Arm, Flanged Base,
Carr Lane, Horizontal Toggle Clamp, Clamping Force (lbf): 250, Open Arm, Flanged Base,
SKU: CL-350-HTC-S
Brand: Carr Lane

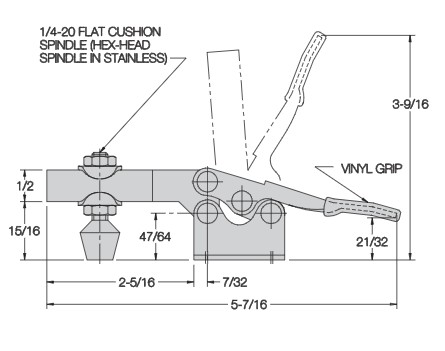

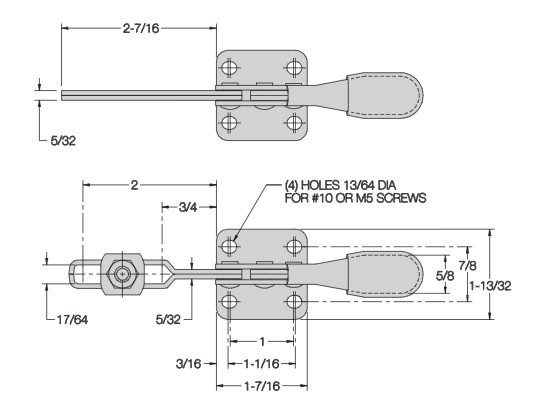

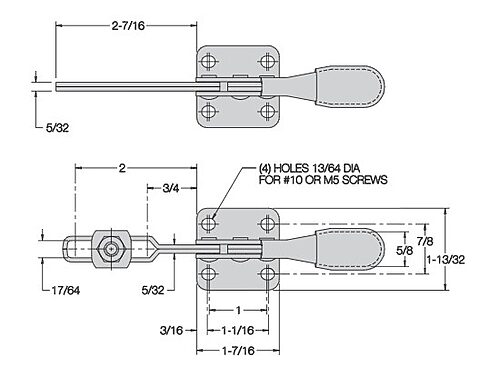

Horizontal Toggle Clamp
$30.48
Additional Information
- Clamping Force (lbf): 250
- Arm Type: Open Arm
- Base Type: Flanged Base
- Style: Stainless Steel
- Material: 300-Series Stainless (Clamp Body),
- Finish: N/A
- Steel clamps are supplied with 1/4-20 short flat-cushion spindle CL-14112-FC. Open-arm versions are additionally supplied with (2) CL-147-TW flanged washers. Solid-arm version is supplied with CL-142000-BR weld-on bolt retainer. Stainless steel clamps are supplied with 1/4-20 stainless hex-head spindle CL-14112-SA-S and (2) CL-147-TW-S stainless flanged washers. For alternative clamping spindles, Contact Us.
Popular medium-duty clamp. Arm opens 90° while handle moves 80°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Choice of flanged base or straight base. Available in in steel or stainless steel. 200 lbs holding capacity.
