Name: Carr Lane Construction Ball Pad, Rectangular, 1/4 Inch Center Hole Diameter
Brand: Carr Lane
SKU: CL-1-CBP
Availability: InStock

Carr Lane Construction Ball Pad, Rectangular, 1/4 Inch Center Hole Diameter

SKU: CL-1-CBP

Brand: Carr Lane

View Specs

Construction-Ball Pad (Rectangular)

$37.47

Additional Information

A DIA NOMINAL (inch): 1/4
A DIA ACTUAL (inch): .2500

Material: 1080 Steel
Finish: Black Oxide
DFARS Compliant
RoHS Compliant

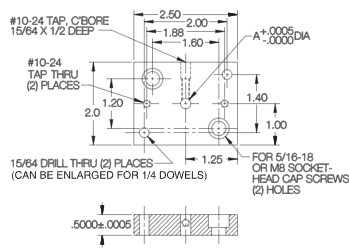

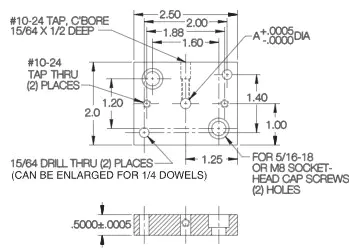

Precision rectangular pad for mounting a Construction Ball. These rectangular pads should be fastened with two socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can be secured by installing a #10-24 setscrew (not furnished) in the crosshole. Available in three sizes, in steel and stainless steel, to fit all Construction Balls with 1/4, 5/16, and 3/8" shank diameters. Made in USA.
