Jergens Forged Center-Pull Hoist Ring, Load Capacity (lb): 24000, Thread Size (inch): 1-1/2-6, Bail Type: Large
Jergens Forged Center-Pull Hoist Ring, Load Capacity (lb): 24000, Thread Size (inch): 1-1/2-6, Bail Type: Large
SKU: 23934
Brand: Jergens

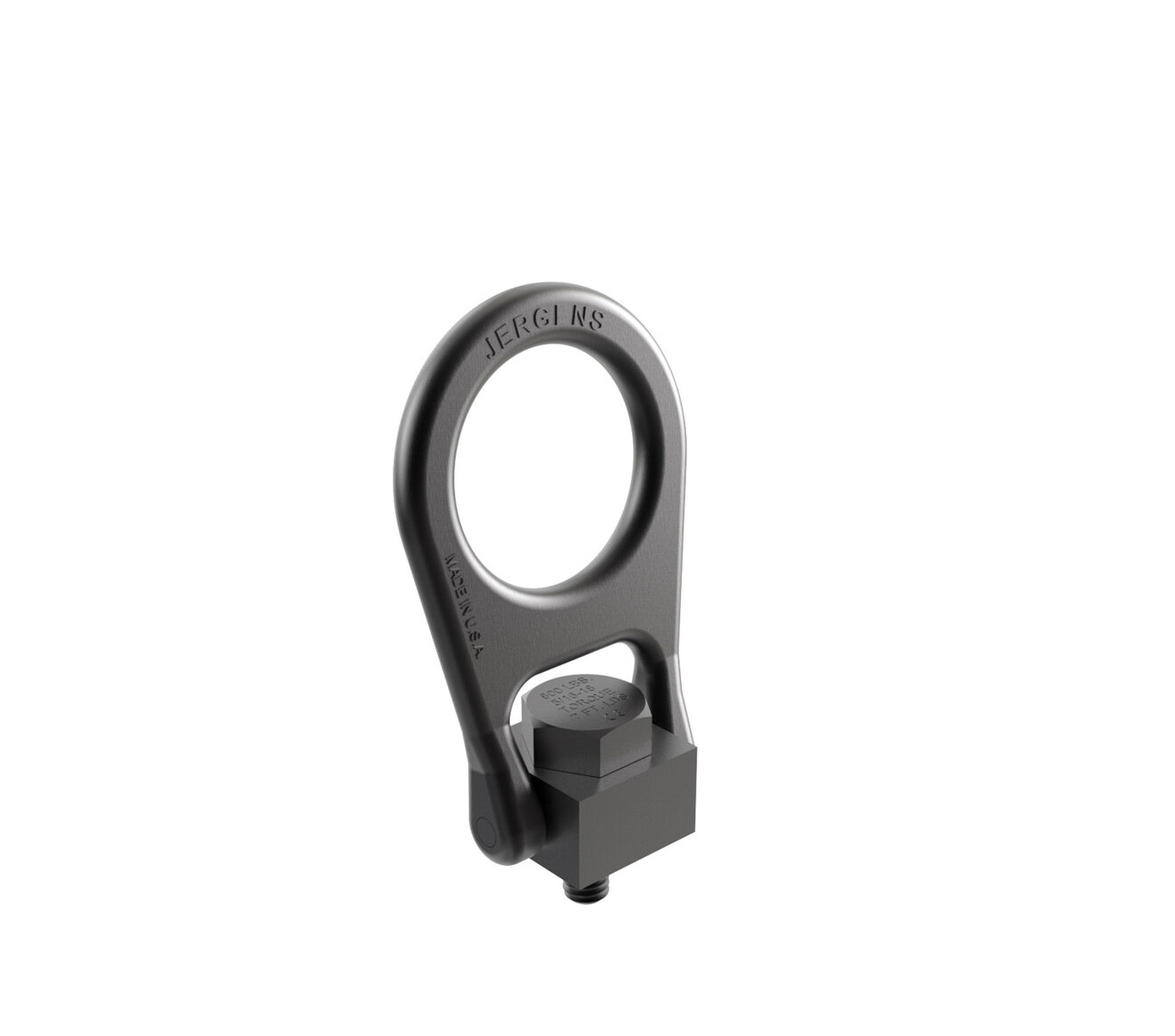

Forged Center-Pull Hoist Ring
$734.40
Additional Information

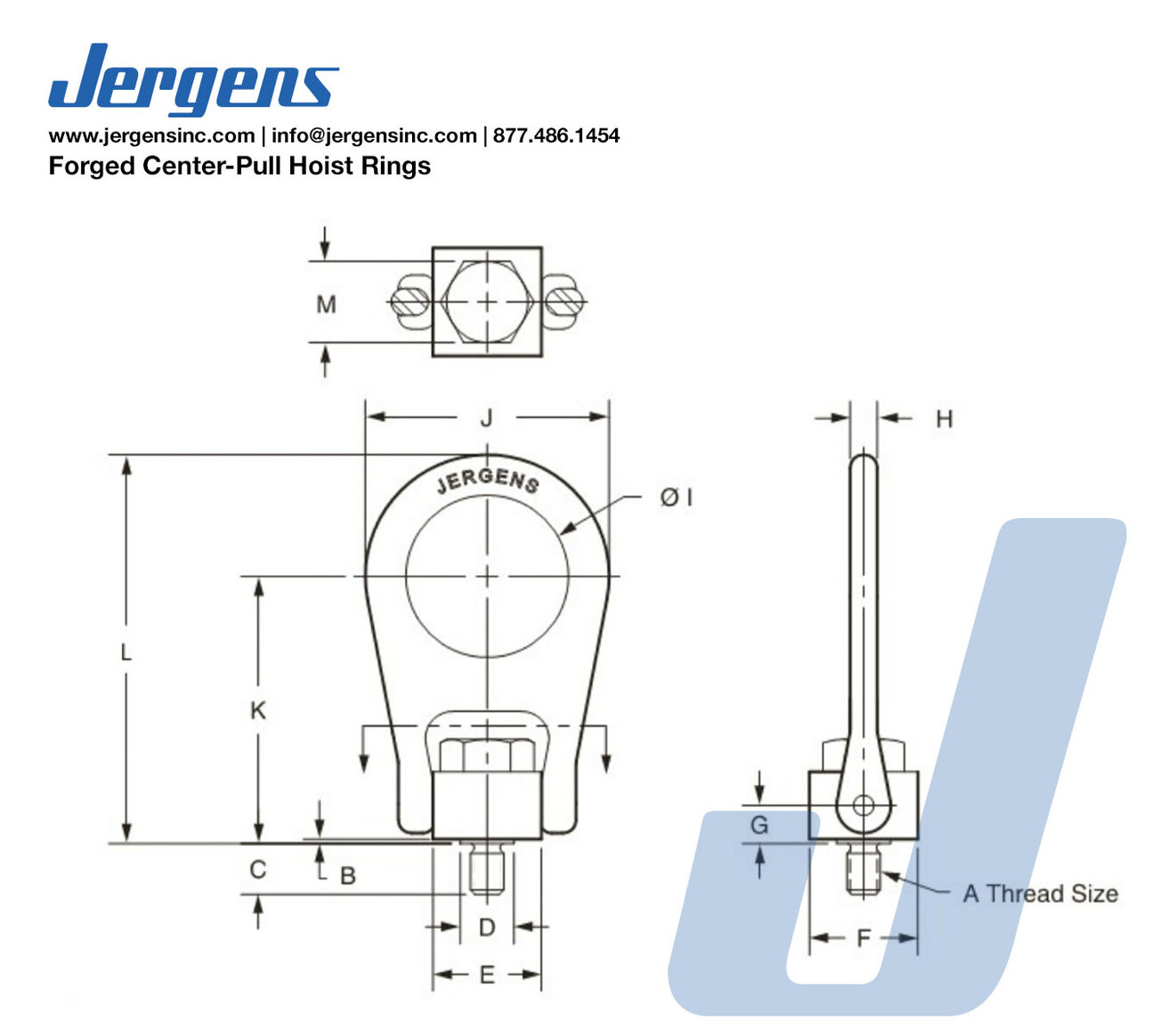

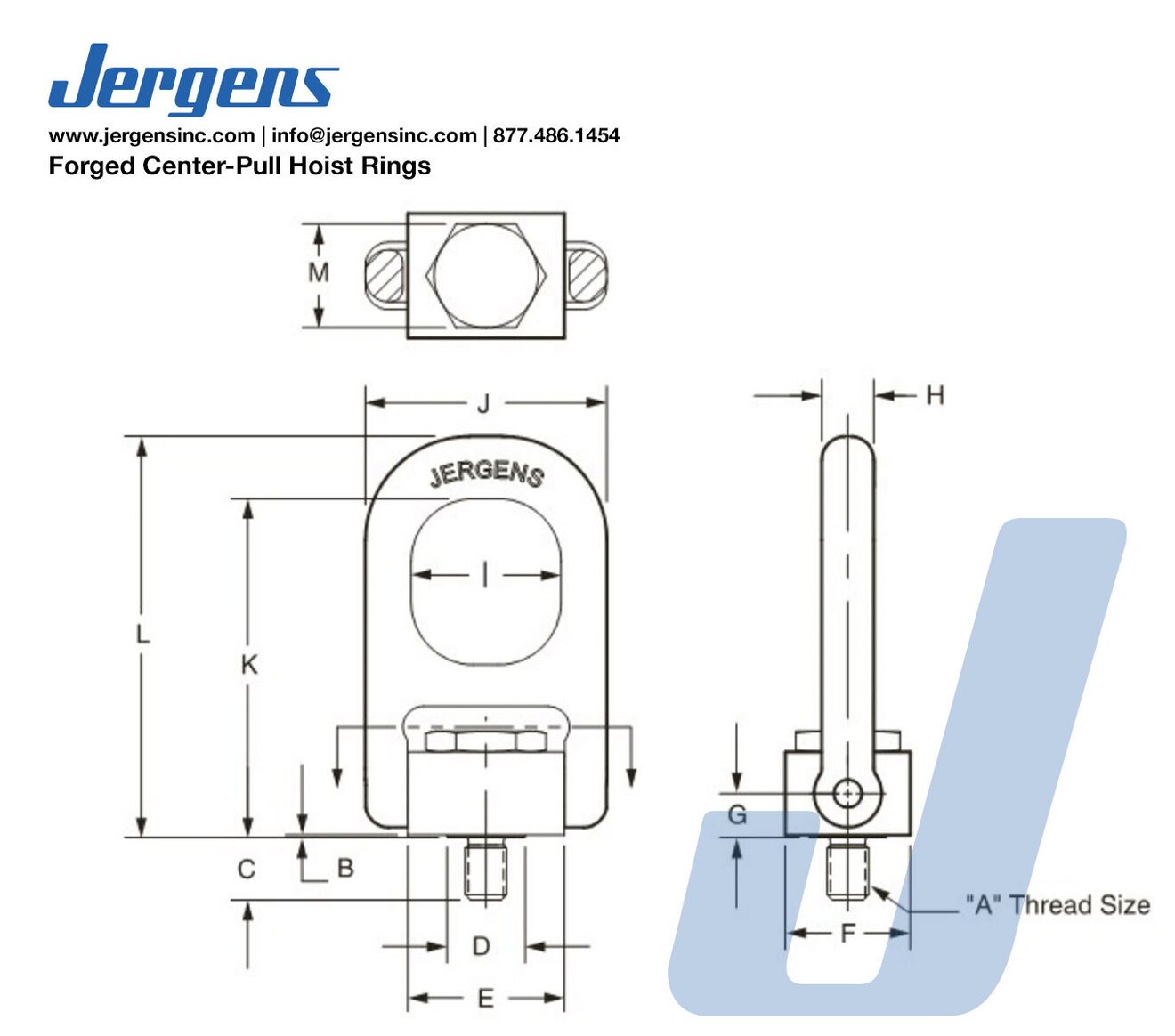

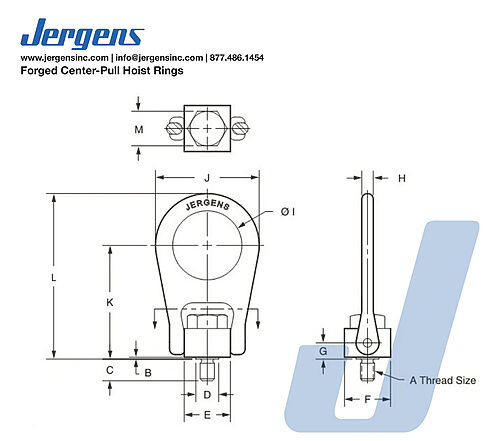

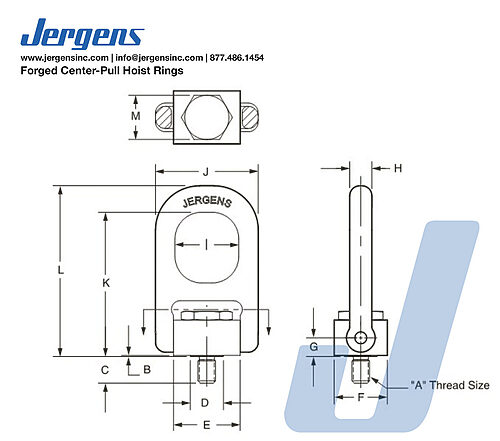

- Thread Size A (inch): 1-1/2-6
- Load Capacity (lb): 24000
- Bail Type: Large
- B (inch): 7/64
- C (inch): 3
- D (inch): 2-1/2
- E (inch): 4-7/8
- F (inch): 4-1/2
- G (inch): 1-7/16
- H (inch): 1-3/4
- I (inch): 4-1/2
- J (inch): 7-23/32
- K (inch): 11-7/16
- L (inch): 13-27/32
- Hex Size M: 3-1/4
- Torque (ft-lb): 800
- Weight (lb): 42.7
- Material & Finish: Alloy Steel, Black Oxide
- Temperature Range: Max 400°F (204°C); Min -20°F (-28°C)
- Magnetic Particle Inspected
Jergens Forged Center-Pull Hoist Rings integrate a solid center brace lift bail into our most popular style of product. This design replaces the use of stationary eyebolts and eliminates the possibility of spreading the lift ring in misapplications. Forged Center-Pull Hoist Rings are ideal for OEM applications such as lifting tooling columns and large fixtures. The rated load may be reduced at 90° from vertical for Inch Part No.'s 23914 & 23915 and Metric Part No.'s 23974, 23978, & 23979.
