Wolverine Tool · Straight-Line Action (Push Type) Clamps

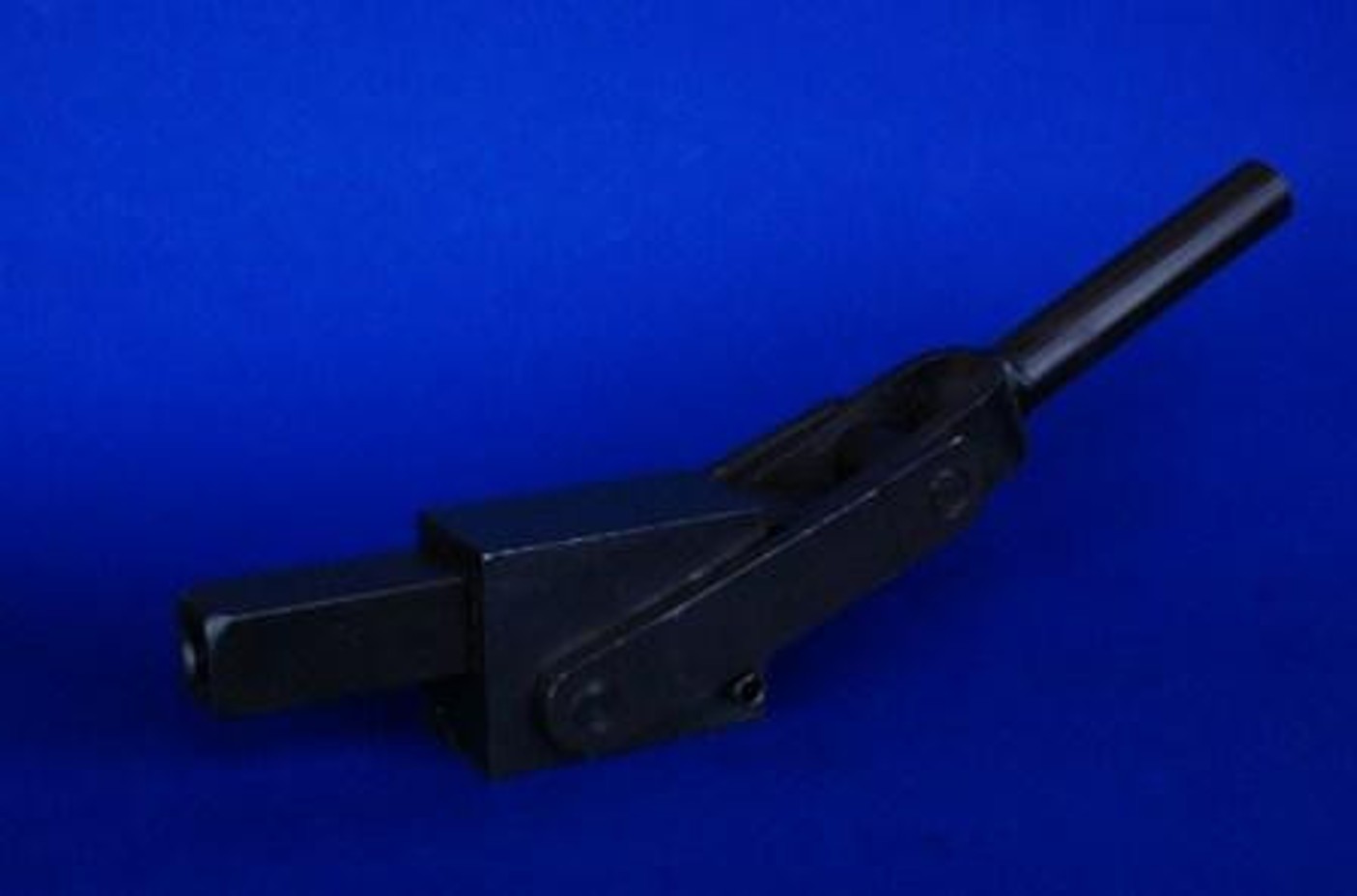

C-150A Series Square Plunger Push Action Toggle Clamp C-151A

MPN: C-151A
SKU: TC-WOLV-000072

Straight-Line Action (Push Type) Clamps — weight_lb: 1.2; stroke_in: 1; overall_length_in: 7-1/2; overall_height_in: 2-3/4

Request pricing

Wolverine Tool prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.

01About this part

The Wolverine Tool C-151A is a toggle clamp from the Straight-Line Action (Push Type) Clamps line. It is specified at 5/16-18 tap x 5/8 deep thread and 2500 lb holding force. It locks workpieces quickly and repeatably for machining, welding, assembly and inspection fixtures, releasing in one motion to keep cycle times short. All Industry Supplies sources this item for Minnesota-area manufacturers, with certification documentation available on request for aerospace, medical and defense work.

02Specifications

Specifications for Wolverine Tool C-151A
Thread size	5/16-18 tap x 5/8 deep
Holding force	2500
notes	C-151A precedes C-150A in this series; hardened plunger
action	square plunger, fast push action, straight line motion
options	No Load Lock option available
base_type	plate base for drilling and bolting
stroke_in	1
weight_lb	1.2
base_length_in	1-3/4
clevis_width_in	1
plunger_section	1/2 square
overall_height_in	2-3/4
overall_length_in	7-1/2
plate_base_height_in	2-1/2
base_plate_thickness_in	1/4
plunger_centerline_height_in	1-1/8
