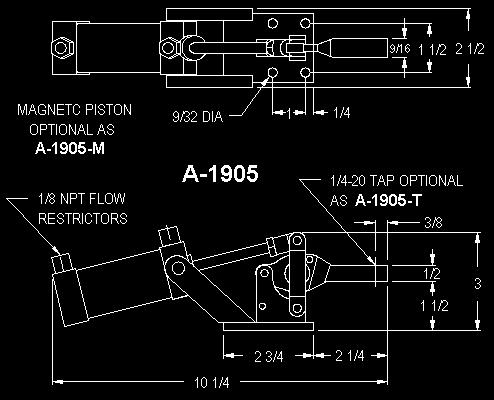

Wolverine Tool A-1905 dimension drawing — Dimension drawing

A-1900 Series Power Operated Toggle Clamp A-1905

MPN: A-1905
SKU: TC-WOLV-000058

Toggle Clamps — weight_lb: 2.9; arm_opening: over 100 degrees; cylinder: Double acting, 1-1/8 in bore; operation: Air or hydraulic

Request pricing

Wolverine Tool prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.

01About this part

The Wolverine Tool A-1905 is a toggle clamp from the Toggle Clamps line. It is specified at 1/4-20 (optional tapped hole in arm) thread and 750 max lb holding force. It locks workpieces quickly and repeatably for machining, welding, assembly and inspection fixtures, releasing in one motion to keep cycle times short. All Industry Supplies sources this item for Minnesota-area manufacturers, with certification documentation available on request for aerospace, medical and defense work.

02Specifications

Specifications for Wolverine Tool A-1905
Thread size	1/4-20 (optional tapped hole in arm)
Holding force	750 max
ports	1/8 NPT
cylinder	Double acting, 1-1/8 in bore
operation	Air or hydraulic
weight_lb	2.9
arm_opening	over 100 degrees
arm_height_in	1-1/2
pin_hole_dia_in	9/32
arm_thickness_in	1/2 SQ
overall_height_in	3
overall_length_in	10-1/4
clamp_base_split_in	2-1/4 + 2-3/4
line_pressure_psi_max	100
