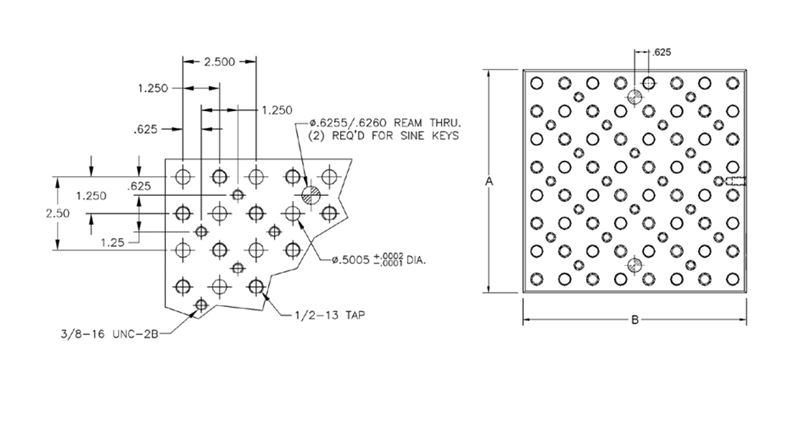

A, B in Specifications refer to this drawing.
Catalog 25020
- MPN
- 25020
- SKU
- ME-TECO-000551
Catalog — A: A N/A 10.000 in; B: B N/A 10.000 in; Add To Cart/Request Quote: Request Quote
TE-CO prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
- Extensive tapped dowel pin hole configuration provides the flexibility to accurately and quickly fixture practically any workpiece or mount any vise. - Fixture plates consist of alternating 1/2" dowel pin holes for workpiece location, along with 1/2" and 3/8" tapped holes for clamping. - Can be accurately located on machine tables by utilizing two reamed 5/8" centerline sine key holes. - Non-standard sizes and mounting configurations are available and will be quoted upon request – otherwise, mounting holes must me added by the customer. - TE-CO supports these products with a full line of tooling components for your fixturing needs. - Hoist rings are also available for proper material handling. - C1119 Steel or equivalent - Blanchard ground flat and parallel to 0.002 in 12" - Tapped holes on location +0.005 - Dowel holes on location +0.001 - All plates are 1.2" thick
| A | A N/A 10.000 in |
|---|---|
| B | B N/A 10.000 in |
How do I get a price for the TE-CO 25020?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the TE-CO 25020 available from stock?
All Industry Supplies sources TE-CO to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
