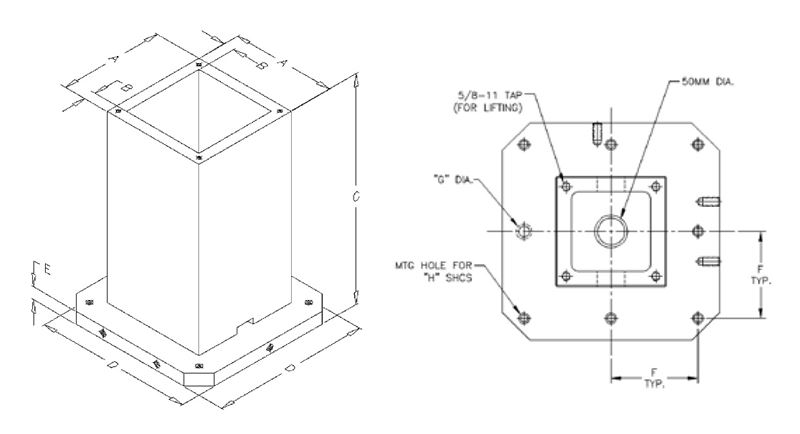

A, B, C, D, E in Specifications refer to this drawing.
Catalog 25303
- MPN
- 25303
- SKU
- ME-TECO-000532
Catalog — A: A N/A 10.000 in; B: B N/A 1.120 in; C: C N/A 25.750 in; D: D N/A 19.700 in
TE-CO prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
Jergens Jig Legs are ideal for cutting costs in simple jig plates. They assure lasting accuracy in your jig plate with a larger bearing surface at the top of the leg. The large-diameter rest button provides a more bearing surface for spot-facing or counterboring on the bottom side. Both legs and rest buttons are hardened for long life. Features, Benefits, & Product Specifications: - Material: Low Carbon Steel - Finish: Black Oxide - Heat Treat: Case Hardened 75-77 R30N - Cap screw included
| A | A N/A 10.000 in |
|---|---|
| B | B N/A 1.120 in |
| C | C N/A 25.750 in |
| D | D N/A 19.700 in |
| E | E N/A 2.000 in |
How do I get a price for the TE-CO 25303?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the TE-CO 25303 available from stock?
All Industry Supplies sources TE-CO to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
