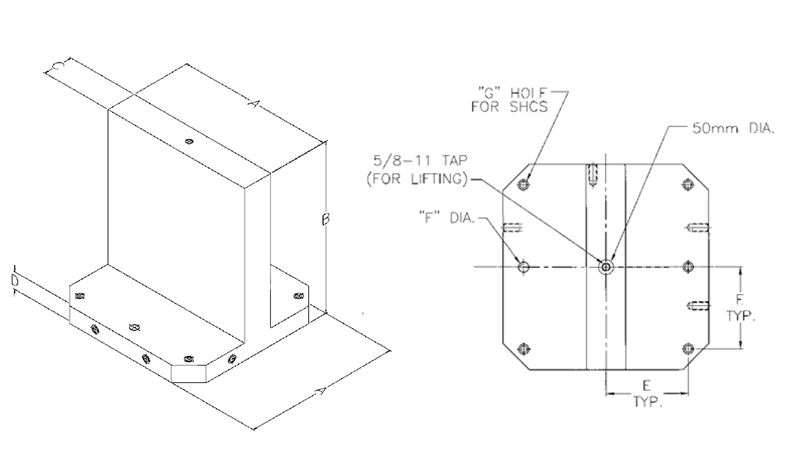

A, B, C, D, E in Specifications refer to this drawing.
Catalog 25407
- MPN
- 25407
- SKU
- ME-TECO-000520
Catalog — A: A N/A 12.600 in; B: B N/A 15.500 in; C: C N/A 3.000 in; D: D N/A 1.500 in
TE-CO prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.
- Provides an accurate fixturing base for workpieces on horizontal and multi-axis machining centers. - Provide a locating and mounting base for fixture - Material: One-piece stress relieved class 40 Meehanite cast iron or equivalent. - Base and upright thickness are milled flat, parallel, and square to .001 in 12". - T-Columns are provided with the standard DIN and JIS mounting configuration. - T-Columns are plain, without a grid pattern or holes, on all four sides. - Grid patterns, non-standard mounting configurations, and special sizes are available and will be quoted upon request. - TE-CO supports these products with a full line of tooling components for your fixturing needs. - Hoist rings are also available for proper material handling.
| A | A N/A 12.600 in |
|---|---|
| B | B N/A 15.500 in |
| C | C N/A 3.000 in |
| D | D N/A 1.500 in |
| E | E N/A 4.960 in |
How do I get a price for the TE-CO 25407?
Add it to a quote request or call 1-763-421-8250. All Industry Supplies answers quote requests within 1 business day.
Is the TE-CO 25407 available from stock?
All Industry Supplies sources TE-CO to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
