Essentra Components · PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead

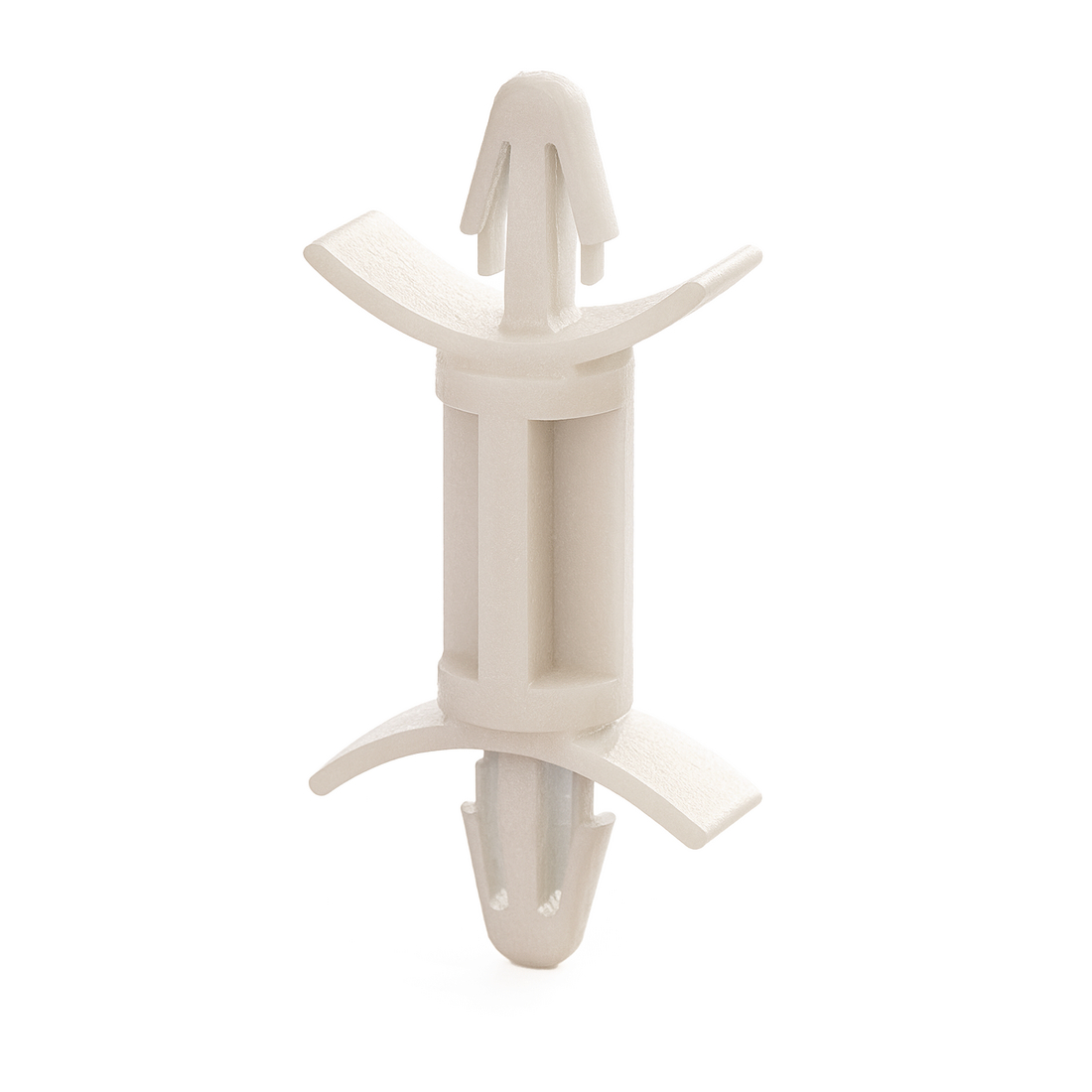

PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead DLCBS3-12-19

MPN: DLCBS3-12-19
SKU: ME-ESSN-001649

PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead — Price range: $0.2283 - $0.2594; Availability: Request the lead time here; Hole Diameter A: 0.157 in 4.0 mm; Hole Diameter B: 0.187 in 4.75 mm

$0.26 / ealist price · volume pricing on your quote

01About this part

The Essentra Components DLCBS3-12-19 is a machine element from the PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead line. It is specified at price range $0.2283 - $0.2594, availability Request the lead time here, hole diameter a 0.157 in 4.0 mm and hole diameter b 0.187 in 4.75 mm. It serves as a standard component in machine builds, fixtures and equipment maintenance, replacing custom-made parts with an off-the-shelf item. All Industry Supplies stocks and sources this item for Minnesota-area manufacturers; current pricing and availability are quoted on request.

02Specifications

Specifications for Essentra Components DLCBS3-12-19
Spacer Length	0.752 in 19.1 mm
Hole Diameter A	0.157 in 4.0 mm
Hole Diameter B	0.187 in 4.75 mm
Panel Thickness A Range	0.031 - 0.078 in 0.79 - 1.98 mm
Panel Thickness B Range	0.031 - 0.078 in 0.79 - 1.98 mm

03Common questions

What is the price of the Essentra Components DLCBS3-12-19?

The list price is $0.26 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Essentra Components DLCBS3-12-19 available from stock?

All Industry Supplies sources Essentra Components to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
