Essentra Components · PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead

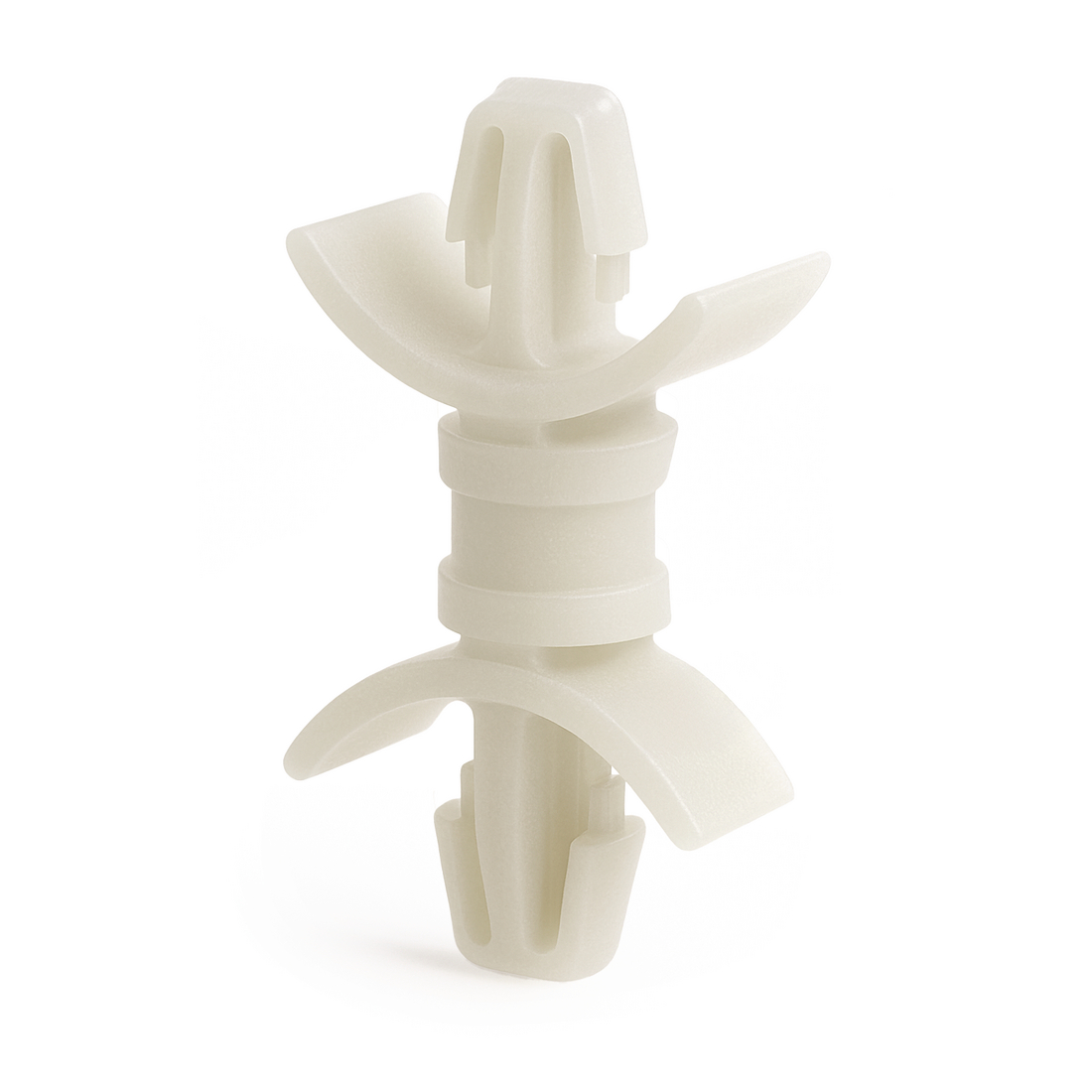

PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead DLCBS5-5-01

MPN: DLCBS5-5-01
SKU: ME-ESSN-001646

PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead — Price range: $0.1822 - $0.2072; Availability: 1000 In stock; Hole Diameter A: 0.138 in 3.5 mm; Hole Diameter B: 0.138 in 3.5 mm

$0.21 / ealist price · volume pricing on your quote

01About this part

The Essentra Components DLCBS5-5-01 is a machine element from the PCB Support Pillars - Dual-Locking/Arrowhead/Arrowhead line. It is specified at price range $0.1822 - $0.2072, availability 1000 In stock, hole diameter a 0.138 in 3.5 mm and hole diameter b 0.138 in 3.5 mm. It serves as a standard component in machine builds, fixtures and equipment maintenance, replacing custom-made parts with an off-the-shelf item. All Industry Supplies stocks and sources this item for Minnesota-area manufacturers; current pricing and availability are quoted on request.

02Specifications

Specifications for Essentra Components DLCBS5-5-01
Spacer Length	0.311 in 7.9 mm
Hole Diameter A	0.138 in 3.5 mm
Hole Diameter B	0.138 in 3.5 mm
Panel Thickness A Range	0.031 - 0.079 in 0.8 - 2.0 mm
Panel Thickness B Range	0.031 - 0.079 in 0.8 - 2.0 mm

03Common questions

What is the price of the Essentra Components DLCBS5-5-01?

The list price is $0.21 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Essentra Components DLCBS5-5-01 available from stock?

All Industry Supplies sources Essentra Components to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
