Forged Center-Pull Hoist Rings, 5/16-18 In — 23906

MPN: 23906
SKU: LH-JERG-000132

Forged Center-Pull Hoist Rings — Unit: Inch; Load Capacity: 800 lbs; Bail Type: Ring; B (In): 3/64

Request pricing

Jergens prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.

Manufacturer spec sheet

01About this part

Jergens Forged Center-Pull Hoist Rings integrate a solid center brace lift bail into our most popular style of product. This design replaces the use of stationary eyebolts and eliminates the possibility of spreading the lift ring in misapplications. Forged Center-Pull Hoist Rings are ideal for OEM applications such as lifting tooling columns and large fixtures. Features, Benefits, & Product Specifications: Material & Finish: Alloy Steel, Black Oxide Temperature Range: Max 400°F (204°C); Min -20°F (-28°C) Magnetic Particle Inspected Note(s): The rated load may be reduced at 90° from vertical for Inch Part No.'s 23914 & 23915 and Metric Part No.'s 23974, 23978, & 23979 . If requesting large quantities or high volume please contact customer service via [email protected] or (866) 594-5565 . For a self-service alternative, try our Quick Quote form!

02Specifications

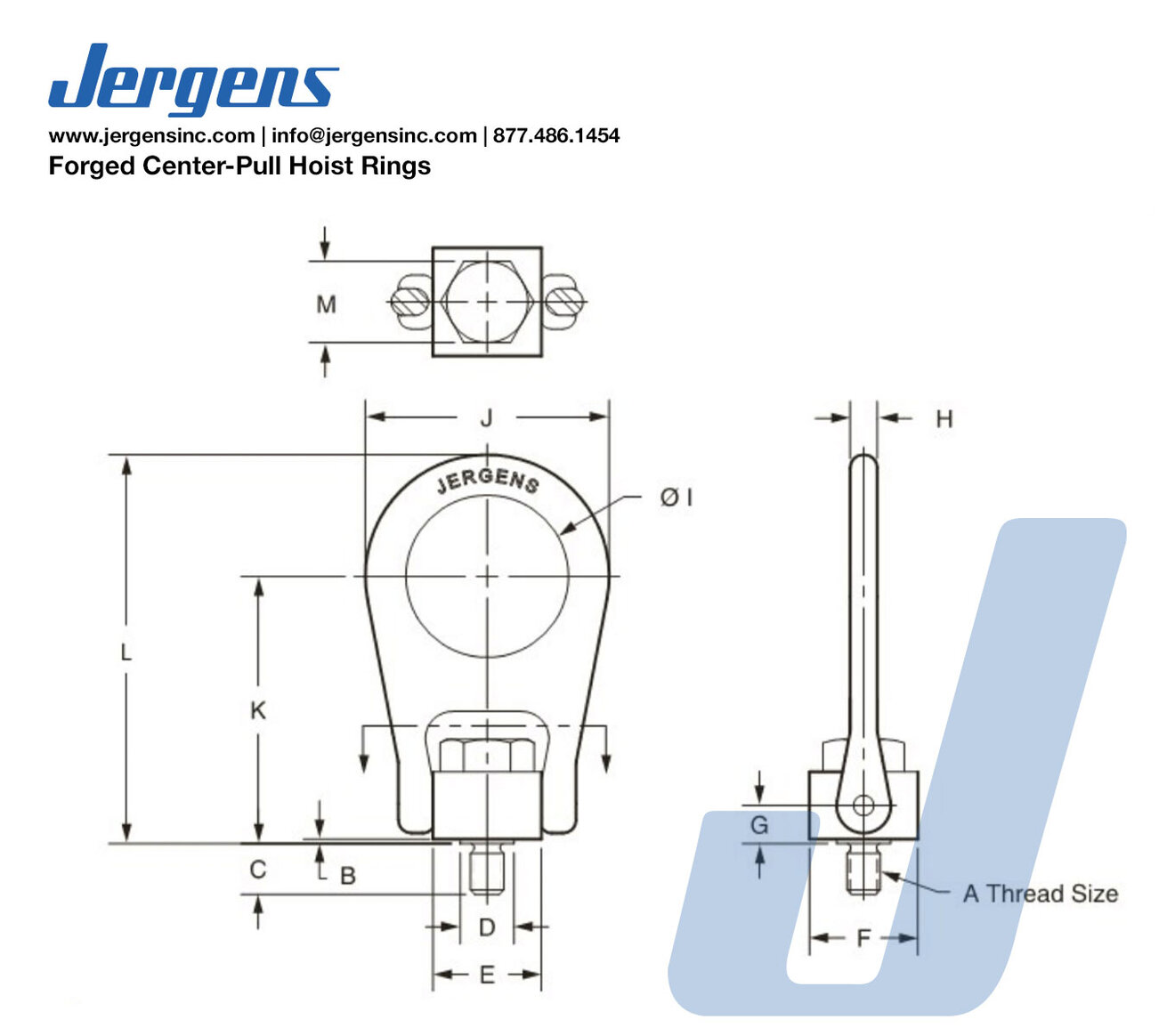

Specifications for Jergens 23906
Thread size	5/16-18 In
Weight	0.6
Unit	Inch
B (In)	3/64
C (In)	15/32
D (in)	1/2
E (in)	1
F (in)	1
G (in)	11/32
H (in)	1/4
I (in)	1 1/2
J (in)	2 1/4
K (in)	2 15/32
L (in)	3 19/32
Bail Type	Ring
Hex Size M	3/4
Weight (lbs)	0.6
Load Capacity	800 lbs
Torque (ft. lbs.)	7
