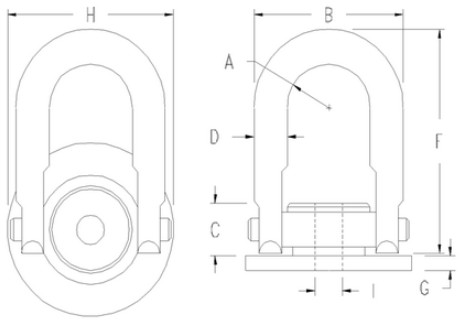

A, B, C, D, F, G, H in Specifications refer to this drawing.
Actek · Round Base Swivel Hoist Ring
Round Base Swivel Hoist Ring, 24,000 lbs — 44404
- MPN
- 44404
- SKU
- LH-ACTK-000433
Round Base Swivel Hoist Ring — Units: Inch; A: 2.25 in; B: 8 in; C: 2 17/32 in
$45.33 / ealist price · volume pricing on your quote
01About this part
Round Base Swivel Hoist Ring part number 44404 from ACTEK Manufacturing & Engineering, part of ACTEK's Hoist Rings line. Specifications: Rated load 24,000 lbs; Material Alloy Steel; Finish Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated); Torque 800 ft-lbs; Safety Factor 5:1; Swivel Angle 360°; Pivot Angle 180°; Weight 41 lbs; SortI 12. Dimensions: A = 2.25 in, B = 8 in, C = 2 17/32 in, D = 1 3/4 in, F = 12 5/32 in, G = 11/16 in, H = 8 1/2 in, I = 1 1/2 in. Manufacturer documentation: Round Base Swivel & Pivot Hoist Ring Safety Precaution.
02Specifications
| Material | Alloy Steel |
|---|---|
| Finish | Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated) |
| Load capacity | 24,000 lbs |
| Weight | 41 lbs |
| A | 2.25 in |
| B | 8 in |
| C | 2 17/32 in |
| D | 1 3/4 in |
| F | 12 5/32 in |
| G | 11/16 in |
| H | 8 1/2 in |
| I | 1 1/2 in |
| SortI | 12 |
| Units | Inch |
| Torque | 800 ft-lbs |
| CAD File | AK44404.step |
| Pivot Angle | 180° |
| Swivel Angle | 360° |
| Safety Factor | 5:1 |
| Actek Manufacturer Number | AK44404 |
03Common questions
What is the price of the Actek 44404?
The list price is $45.33 per each. Volume pricing is available — request a quote for quantity breaks.
What is the load capacity of the Actek 44404?
24,000 lbs. Full specifications are on this page and in the manufacturer's spec sheet.
Is the Actek 44404 available from stock?
All Industry Supplies sources Actek to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
