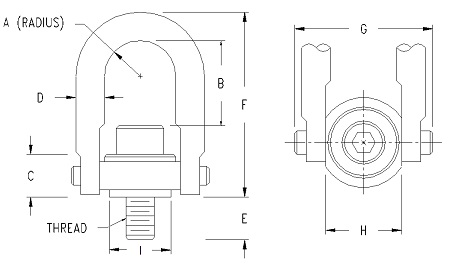

Actek 46332 dimension drawing — Dimension drawing

Actek · Safety Swivel Hoist Rings

Extended Range Safety Hoist Ring 46332

MPN: 46332
SKU: LH-ACTK-000032

Extended Range Safety Hoist Ring — Units: Inch; A: 3.75 in; B: 8.51 in; C: 5.28 in

Request pricing

Actek prices this line on request. Add it to your quote — we answer within 1 business day, and quotes carry the exact part number so nothing gets re-found.

Manufacturer spec sheet

01About this part

Extended Range Safety Hoist Ring part number 46332 from ACTEK Manufacturing & Engineering, part of ACTEK's Hoist Rings line. Specifications: Rated load 80,000 lbs; Thread size 3 1/2" - 4; Material Alloy Steel; Finish Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated); Torque 5,100 ft-lbs; Safety Factor 5:01; Swivel Angle 360°; Pivot Angle 180°; Weight 163.5 lbs; Type Standard U-Bar; Replacement Screw 46332-STUD; U-Bar (D) 2-3/4 in. Dimensions: A = 3.75 in, B = 8.51 in, C = 5.28 in, D = 2 3/4 in, E = 5 in, F = 20 in, G = 14.12 in, H = 8.10 in, I = 6.45 in. Manufacturer documentation: Safety Engineering Swivel Hoist Ring Safety Precautions.pdf.

02Specifications

Specifications for Actek 46332
Material	Alloy Steel
Finish	Black Oxide (Also available: Cadmium Plated, Electroless Nickel Plated, Zinc Plated)
Thread size	3 1/2" - 4
Load capacity	80,000 lbs
Weight	163.5 lbs
A	3.75 in
B	8.51 in
C	5.28 in
D	2 3/4 in
E	5 in
F	20 in
G	14.12 in
H	8.10 in
I	6.45 in
Type	Standard U-Bar
Units	Inch
Torque	5,100 ft-lbs
Product	Extended Range Safety Hoist Ring
CAD File	AK46332.step
U-Bar (D)	2-3/4 in
Pivot Angle	180°
Swivel Angle	360°
Safety Factor	5:01
Replacement Screw	46332-STUD
Thread Protrusion - (E)	5 in
Actek Manufacturer Number	AK46332
