Fairlane · Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT)
Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT) MCT-202
- MPN
- MCT-202
- SKU
- IL-FAIR-002441
Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT) — Model Name: MCT-100; SKU: MCT-202; Description: Carbide Tipped Gripper - Round - 20 mm Dia X 12 mm - Fine; Brand: 1
$10.47 / ealist price · volume pricing on your quote
01About this part

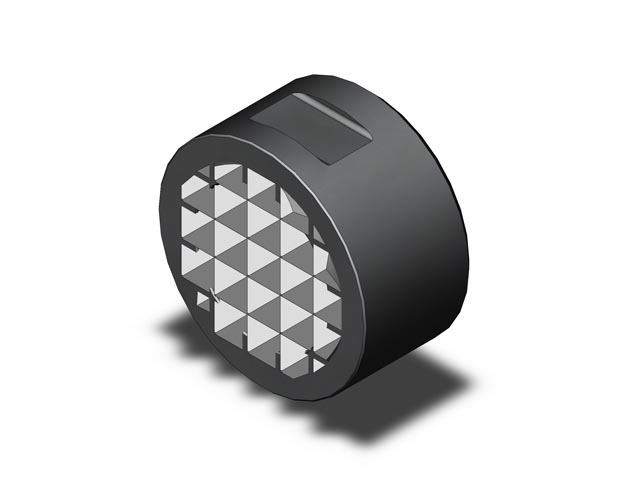

Grippers - Round - Carbide Tipped - Diamond Serration - Tapped - Metric (MCT). Carbide Tipped Gripper - Round - 20 mm Dia X 12 mm - Fine. Constructed with a serrated carbide gripper pad brazed to a heat treated alloy steel body. Blind-hole tap for back side mounting. Flat on O.D. for set screw mounting. Specifications: Diameter Overall mm: 20; Height Overall mm: 12; Height to Center of Flat mm: 6.0; Height Flat mm: 4.75; Diameter Contact Surface mm: 5/8; Thread Internal - Tap: M6x1.0; Pattern Tooth: Fine.
02Specifications
| 0 | 20 |
|---|---|
| 1 | 12 |
| 2 | 6.0 |
| 3 | 4.75 |
| 4 | 5/8 |
| 5 | M6x1.0 |
| 6 | Fine |
| SKU | MCT-202 |
| Brand | 1 |
| Model Name | MCT-100 |
| Product ID | 100594 |
| Description | Carbide Tipped Gripper - Round - 20 mm Dia X 12 mm - Fine |
| CAD Model Link | CAD |
03Common questions
What is the price of the Fairlane MCT-202?
The list price is $10.47 per each. Volume pricing is available — request a quote for quantity breaks.
Is the Fairlane MCT-202 available from stock?
All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
