Fairlane HSE-973-SS

Fairlane · Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS)

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS) HSE-973-SS

MPN
HSE-973-SS
SKU
IL-FAIR-002340

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS) — Model Name: HSE-902-SS; SKU: HSE-973-SS; Description: Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine Straight; Brand: 1

$13.73 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

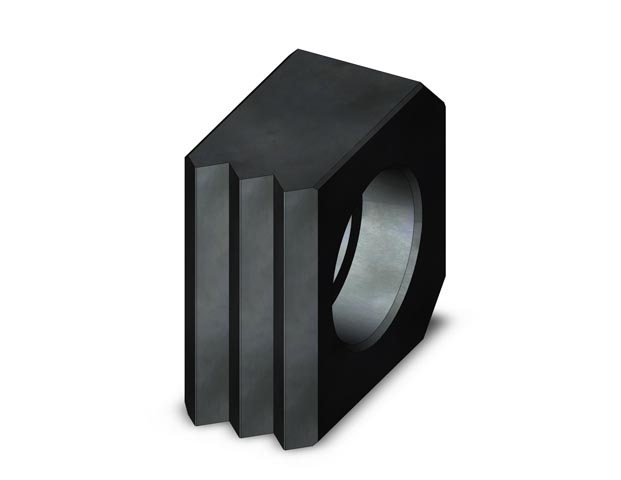

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS). Tool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine Straight. Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw. Specifications: Width Overall in: 3/4; Height Overall in: 3/8; Height CBore in: .161; CBore mounting Screw (clearance): 5/16 LHCS; Chamfer in: 1/8x45°; Pattern Tooth: Fine.

02Specifications
Specifications for Fairlane HSE-973-SS
03/4
13/8
2.161
35/16 LHCS
41/8x45°
5Fine
SKUHSE-973-SS
Brand1
Model NameHSE-902-SS
Product ID101667
DescriptionTool Steel Gripper - Edge - 3/4 in X 3/8 in - Fine Straight
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane HSE-973-SS?

The list price is $13.73 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane HSE-973-SS available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
