Fairlane HSE-903-SS-SF

Fairlane · Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS)

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS) HSE-903-SS-SF

MPN
HSE-903-SS-SF
SKU
IL-FAIR-002320

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS) — Model Name: HSE-902-SS; SKU: HSE-903-SS-SF; Description: Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine Straight; Brand: 1

$8.45 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

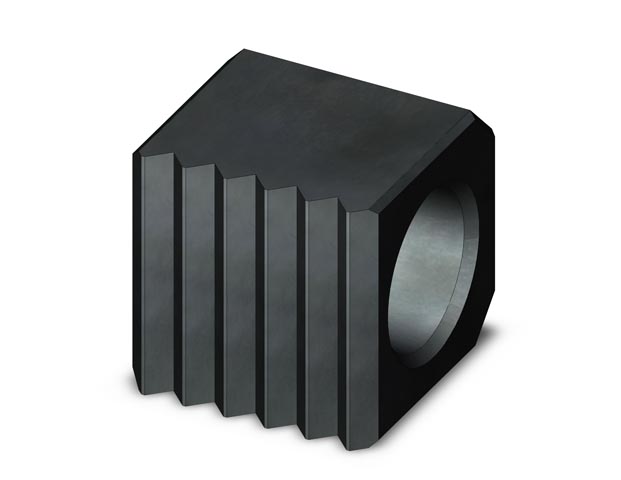

Grippers - Edge Gripper - Tool Steel - Straight Serration - C'Bore - Inch (HSE-SS). Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine Straight. Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw. Specifications: Width Overall in: 3/8; Height Overall in: 3/8; Height CBore in: .200; CBore mounting Screw (clearance): #6 SHCS; Chamfer in: 1/16x45°; Pattern Tooth: SF.

02Specifications
Specifications for Fairlane HSE-903-SS-SF
03/8
13/8
2.200
3#6 SHCS
41/16x45°
5SF
SKUHSE-903-SS-SF
Brand1
Model NameHSE-902-SS
Product ID101346
DescriptionTool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine Straight
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane HSE-903-SS-SF?

The list price is $8.45 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane HSE-903-SS-SF available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
