Fairlane MHSE-9202

Fairlane · Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE)

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE) MHSE-9202

MPN
MHSE-9202
SKU
IL-FAIR-002314

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE) — Model Name: MHSE-9106; SKU: MHSE-9202; Description: Tool Steel Gripper - Edge - 20 mm X 12 mm - Fine; Brand: 1

$14.18 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

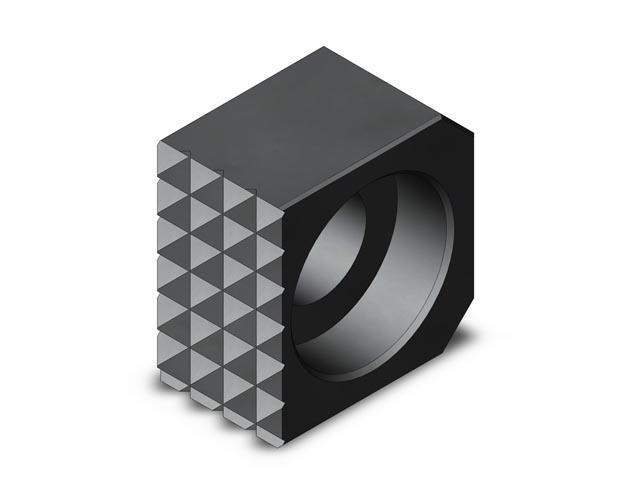

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Metric (MHSE). Tool Steel Gripper - Edge - 20 mm X 12 mm - Fine. Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw. Specifications: Width Overall mm: 20; Height Overall mm: 12; Height CBore mm: 5.08; CBore mounting Screw (clearance) mm: M8 LHCS; Chamfer mm: 3.2x45°; Pattern Tooth: Fine.

02Specifications
Specifications for Fairlane MHSE-9202
020
112
25.08
3M8 LHCS
43.2x45°
5Fine
SKUMHSE-9202
Brand1
Model NameMHSE-9106
Product ID100348
DescriptionTool Steel Gripper - Edge - 20 mm X 12 mm - Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane MHSE-9202?

The list price is $14.18 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane MHSE-9202 available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
