Fairlane HSE-975

Fairlane · Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE)

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE) HSE-975

MPN
HSE-975
SKU
IL-FAIR-002296

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE) — Model Name: HSE-902; SKU: HSE-975; Description: Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Fine; Brand: 1

$13.95 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

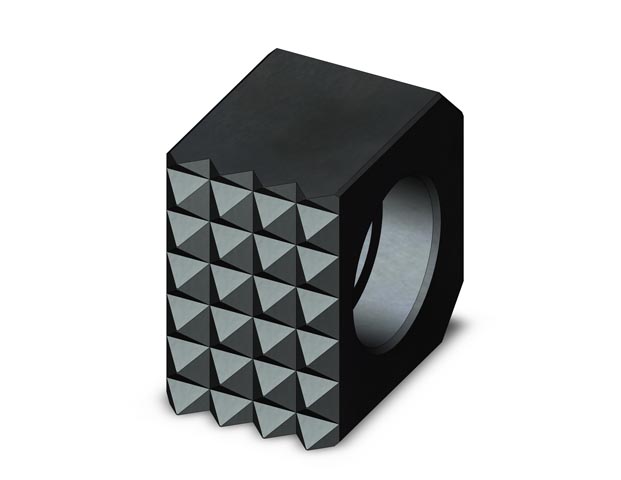

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE). Tool Steel Gripper - Edge - 3/4 in X 1/2 in - Fine. Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw. Specifications: Width Overall in: 3/4; Height Overall in: 1/2; Height CBore in: .161; CBore mounting Screw (clearance) in: 5/16 LHCS; Chamfer in: 1/8x45°; Pattern Tooth: Fine.

02Specifications
Specifications for Fairlane HSE-975
03/4
11/2
2.161
35/16 LHCS
41/8x45°
5Fine
SKUHSE-975
Brand1
Model NameHSE-902
Product ID101688
DescriptionTool Steel Gripper - Edge - 3/4 in X 1/2 in - Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane HSE-975?

The list price is $13.95 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane HSE-975 available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
