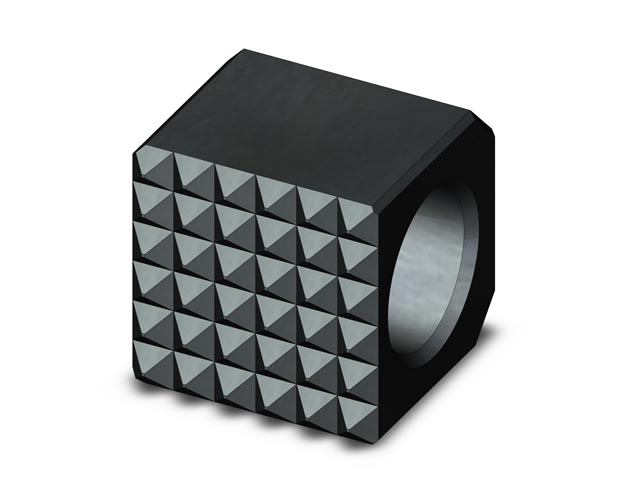

Fairlane HSE-903-SF

Fairlane · Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE)

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE) HSE-903-SF

MPN
HSE-903-SF
SKU
IL-FAIR-002274

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE) — Model Name: HSE-902; SKU: HSE-903-SF; Description: Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine; Brand: 1

$8.45 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

Grippers - Edge Gripper - Tool Steel - Diamond Serration - C'Bore - Inch (HSE). Tool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine. Made from M-2 high speed steel. Hardened to Rc 60/62 with black oxide finish. Square edge grippers have serrations on one side. Counter bored hole for front mounting with a socket head or low head cap screw. Specifications: Width Overall in: 3/8; Height Overall in: 3/8; Height CBore in: .146; CBore mounting Screw (clearance) in: #6 SHCS; Chamfer in: 1/16x45°; Pattern Tooth: SF.

02Specifications
Specifications for Fairlane HSE-903-SF
03/8
13/8
2.146
3#6 SHCS
41/16x45°
5SF
SKUHSE-903-SF
Brand1
Model NameHSE-902
Product ID101328
DescriptionTool Steel Gripper - Edge - 3/8 in X 3/8 in - Super Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane HSE-903-SF?

The list price is $8.45 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane HSE-903-SF available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
