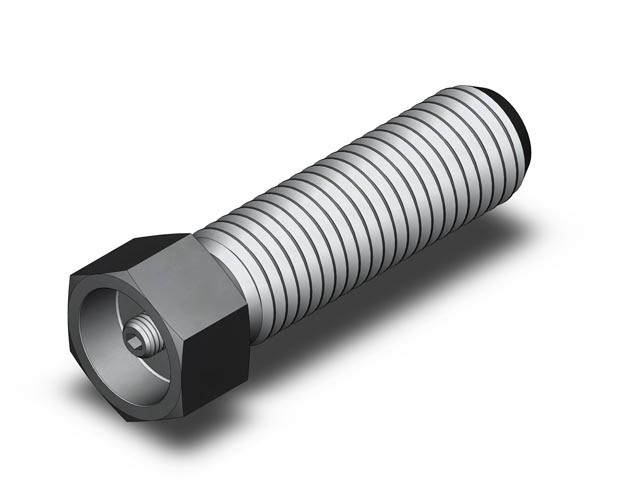

Grippers - Hex Head Adjustable - Serrated - Replaceable Pad Design (AJH) AJH-0755X2.5

Grippers - Hex Head Adjustable - Serrated - Replaceable Pad Design (AJH). AJH Adjustable Gripper - 3/4-10 X 2-1/2 in. The replaceable gripper is held in place with a differential lock screw. The gripper can be replaced when worn or a different style gripper is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts listed below are for the housing unit and differential lock screw only and do not include a gripper. Grippers must be ordered separately. Use only with grippers that have a tapped through hole. Specifications: Length Shank in: 2-1/2; Thread External: 3/4-10; Diameter Contact Surface in: 3/4; Part No. Gripper in: HS-75; Hex External in: 15/16; Thread Internal - Tap: 1/4-28 L.H.; Hex Internal in: 5/16; Height Head And Gripper in: 5/8.
