Fairlane MCTH-20250X60

Fairlane · Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH)

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH) MCTH-20250X60

MPN
MCTH-20250X60
SKU
IL-FAIR-001801

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH) — Model Name: MCTH-06102; SKU: MCTH-20250X60; Description: MCTH Adjustable Gripper - M20 X 2.50 X 60 mm - Extra Fine; Brand: 1

$22.13 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

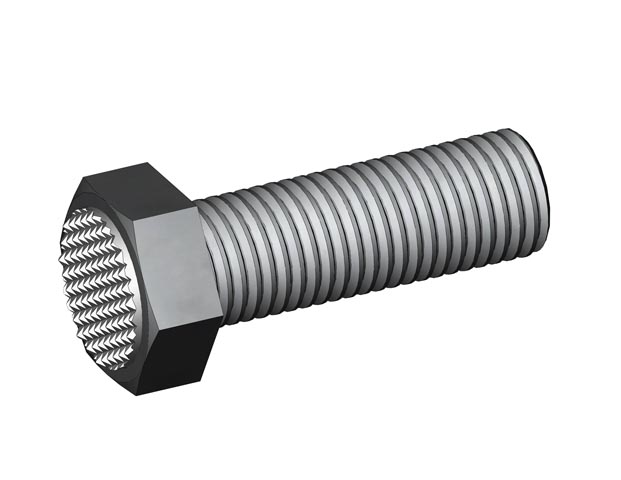

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH). MCTH Adjustable Gripper - M20 X 2.50 X 60 mm - Extra Fine. The threaded body allows the user to adjust the height of the gripper. The serrated carbide tip provides positive holding and wear resistance. The body is made from a Grade 8 fastener with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head. Specifications: Length Shank mm: 60; Length Head mm: 13.7; Diameter Contact Surface in: 1; Hex External - Flat mm: 30; Thread mm: M20x2.50; Pattern Tooth: EF.

02Specifications
Specifications for Fairlane MCTH-20250X60
060
113.7
21
330
4M20x2.50
5EF
SKUMCTH-20250X60
Brand1
Model NameMCTH-06102
Product ID101207
DescriptionMCTH Adjustable Gripper - M20 X 2.50 X 60 mm - Extra Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane MCTH-20250X60?

The list price is $22.13 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane MCTH-20250X60 available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
