Fairlane MCTH-16200

Fairlane · Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH)

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH) MCTH-16200

MPN
MCTH-16200
SKU
IL-FAIR-001798

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH) — Model Name: MCTH-06102; SKU: MCTH-16200; Description: MCTH Adjustable Gripper - M16 X 2.00 X 35 mm - Fine; Brand: 1

$12.71 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

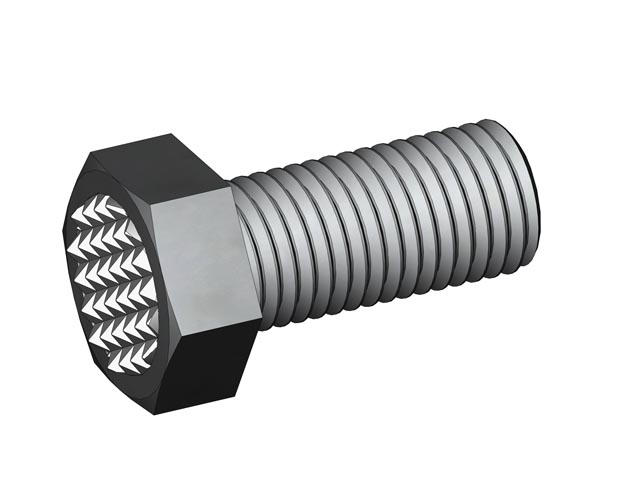

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Metric (MCTH). MCTH Adjustable Gripper - M16 X 2.00 X 35 mm - Fine. The threaded body allows the user to adjust the height of the gripper. The serrated carbide tip provides positive holding and wear resistance. The body is made from a Grade 8 fastener with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head. Specifications: Length Shank mm: 35; Length Head mm: 11; Diameter Contact Surface in: 3/4; Hex External - Flat mm: 24; Thread mm: M16x2.00; Pattern Tooth: Fine.

02Specifications
Specifications for Fairlane MCTH-16200
035
111
23/4
324
4M16x2.00
5Fine
SKUMCTH-16200
Brand1
Model NameMCTH-06102
Product ID101174
DescriptionMCTH Adjustable Gripper - M16 X 2.00 X 35 mm - Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane MCTH-16200?

The list price is $12.71 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane MCTH-16200 available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
