Fairlane CTH-0250

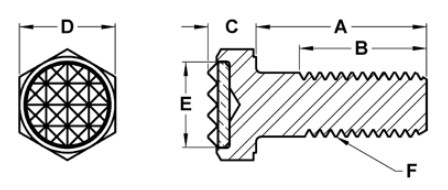

Dimension drawing
Fairlane CTH-0250 dimension drawing

Fairlane · Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH)

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH) CTH-0250

MPN
CTH-0250
SKU
IL-FAIR-001718

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH) — Model Name: CTH-0200; SKU: CTH-0250; Description: CTH Adjustable Gripper - 1/4-20 X 1 in - Extra Fine; Brand: 1

$6.32 / ealist price · volume pricing on your quote
or call 1-763-421-8250
Manufacturer spec sheet
01About this part

Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH). CTH Adjustable Gripper - 1/4-20 X 1 in - Extra Fine. The threaded body allows the user to adjust the height of the gripper. The serrated carbide tip provides positive holding and wear resistance. The body is made from a Grade 8 fastener with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head. Specifications: Length Shank in: 1; Length Thread in: 7/8; Height Head in: 13/64; Hex External in: 7/16; Diameter Contact Surface in: 5/16; Thread External: 1/4-20; Pattern Tooth: EF.

02Specifications
Specifications for Fairlane CTH-0250
01
17/8
213/64
37/16
45/16
51/4-20
6EF
SKUCTH-0250
Brand1
Model NameCTH-0200
Product ID100549
DescriptionCTH Adjustable Gripper - 1/4-20 X 1 in - Extra Fine
CAD Model LinkCAD
03Common questions
What is the price of the Fairlane CTH-0250?

The list price is $6.32 per each. Volume pricing is available — request a quote for quantity breaks.

Is the Fairlane CTH-0250 available from stock?

All Industry Supplies sources Fairlane to order from the manufacturer. Lead times are confirmed on your quote — most items ship within days.
