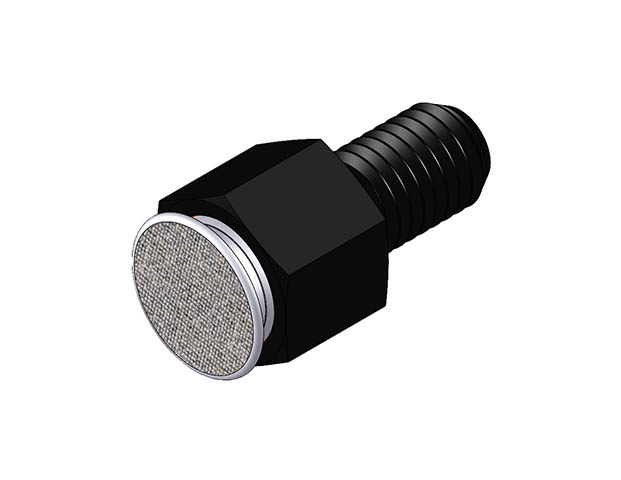

Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MBUH-FC-DS) MBUH-12020-FC-DS

Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MBUH-FC-DS). Hex Design Swivot - M12 X 1.75 X 20 mm - Diamond Surface. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat mm: 19; Height Head mm: 15; Length Thread mm: 20; Diameter Contact Surface mm: 19; Standoff mm: 4; Thread External mm: M12x1.5; Degree Swivel Degrees: 24; Hex Internal - Flat mm: 5; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-FC-DS.
