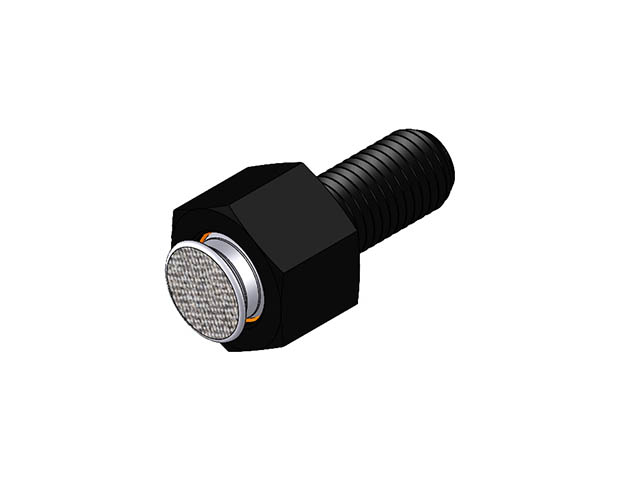

Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Inch (BUH-FC-DS) BUH-0280-FC-DS

Hex Head Swivots® Gripper Assembly - Diamond Surface Cone - Inch (BUH-FC-DS). Hex Design Swivot - 1/4-28 X 1/2 - Diamond Surface. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat in: 7/16; Height Head in: 5/16; Length Thread in: 1/2; Diameter Contact Surface in: .315; Height Standoff in: .094; Thread External: 1/4-28; Swivel Degrees: 28; Hex Internal in: —; Diameter Ball in: 9/32; Part No. Ball Only: BUB-200-FC-DS.
