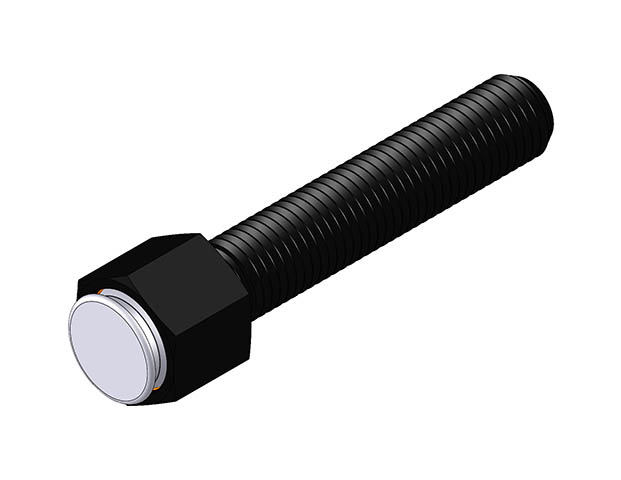

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBUH-FC) MBUH-16080-FC

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBUH-FC). Hex Design Swivot - M16 X 2.0 X 80 Dur mm - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall mm: 24; Height Head mm: 19; Length Thread mm: 80; Diameter Contact Surface mm: 21; Height Standoff mm: 4; Thread External: M16x2.0; Degree Swivel Degrees: 24; Hex Internal - Flat mm: 6; Diameter Ball mm: 20; Part No. Ball Only: MBUB-200-FC.
