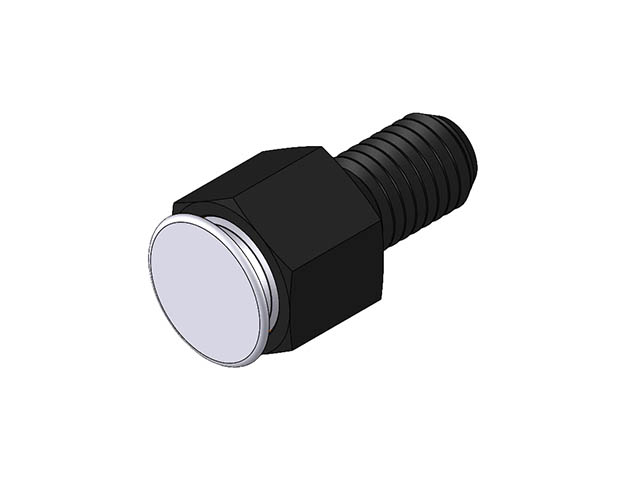

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBUH-FC) MBUH-12020-FC

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MBUH-FC). Hex Design Swivot - M12 X 1.75 X 20 mm - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall mm: 19; Height Head mm: 15; Length Thread mm: 20; Diameter Contact Surface mm: 19; Height Standoff mm: 4; Thread External: M12x1.75; Degree Swivel Degrees: 24; Hex Internal - Flat mm: 5; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-FC.
