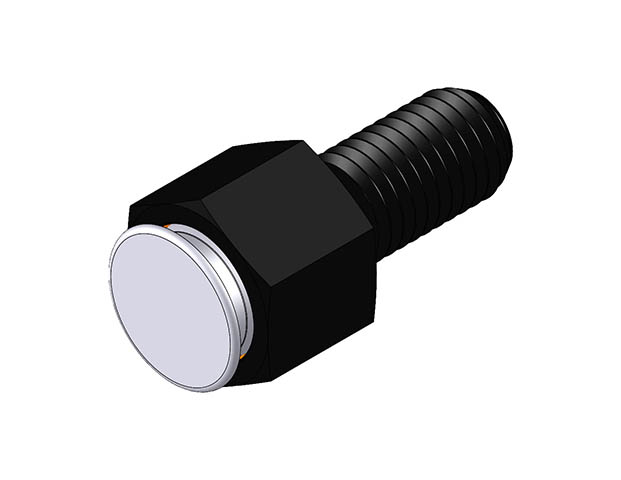

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Inch (BUH-FC) BUH-0510-FC

Hex Head Swivots® Gripper Assembly - Flat Stainless Steel Cone - Inch (BUH-FC). Hex Design Swivot - 1/2-13 X 1 - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat in: 13/16; Height Head in: 5/8; Length Thread in: 1; Diameter Contact Surface in: .748; Height Standoff in: .156; Thread External: 1/2-13; Swivel Degrees: 32; Hex Internal in: 3/16; Diameter Ball in: 5/8; Part No. Ball Only: BUB-600-FC.
