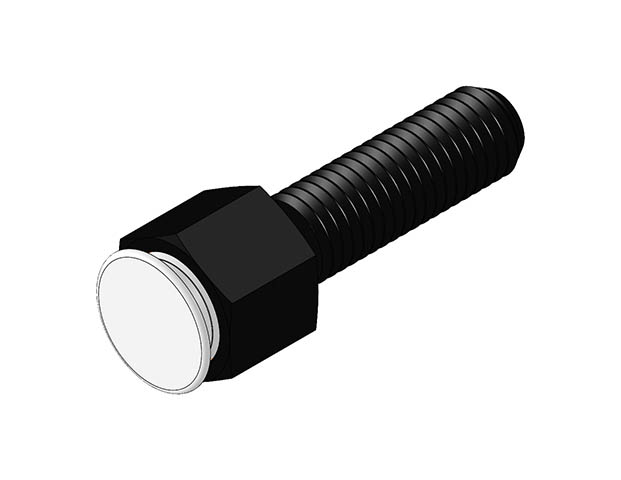

Hex Head Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MBUH-DC) MBUH-12040-DC

Hex Head Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MBUH-DC). Hex Design Swivot - M12 X 1.75 X 40 mm - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Diameter Overall mm: 19; Length Body mm: 15; Length Thread mm: 40; Diameter Contact Surface mm: 19; Height Standoff mm: 4; Thread External: M12x1.75; Degree Swivel Degrees: 24; Hex Internal - Flat lbs: 5; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-DC.
