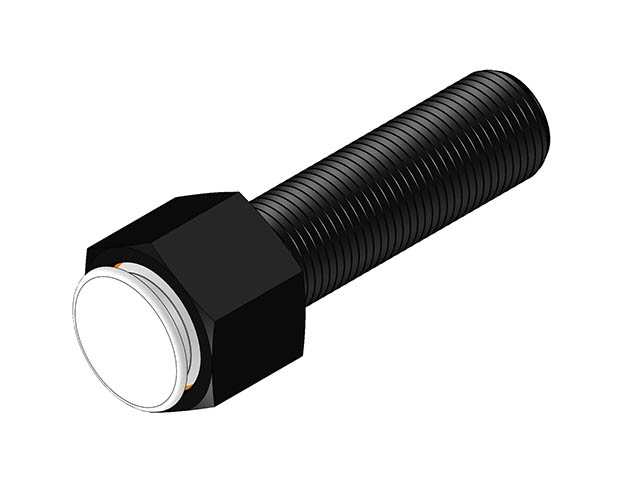

Hex Head Swivots® Gripper Assembly - Flat Delrin Cone - Inch (BUH-DC) BUH-0620X2-DC

Hex Head Swivots® Gripper Assembly - Flat Delrin Cone - Inch (BUH-DC). Hex Design Swivot - 5/8-18 X 2 - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat in: 15/16; Height Head in: 11/16; Length Thread in: 2; Diameter Contact Surface in: .827; Height Standoff in: .156; Thread External: 5/8-18; Swivel Degrees: 32; Hex Internal in: 1/4; Diameter Ball in: 3/4; Part No. Ball Only: BUB-700-DC.
