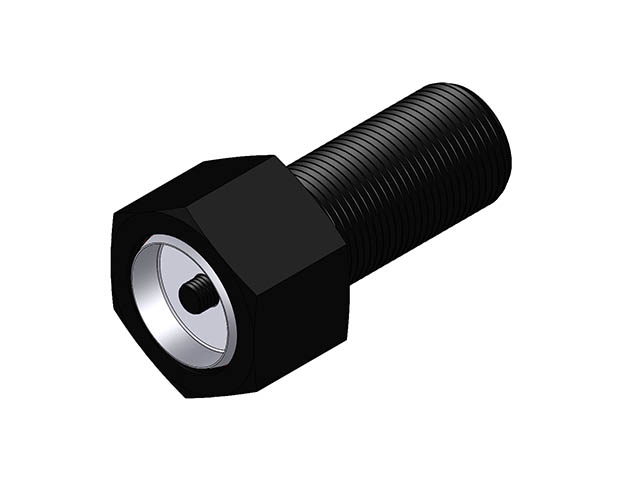

Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BUH) BUH-1114X2

Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BUH). Hex Design Swivot - 1-14 X 2 - Replaceable Pad. The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter . More Information Specifications: Hex in: 1-1/2; Height Head in: 1; Length Thread in: 2; Thread External: 1-14; Hex Internal in: 3/8; Swivel Degrees: 20; Standoff in: 1/4; Diameter Ball in: 1-1/8; Diameter Replaceable Pad in: 1; Rating Load lbs: 26,234.
