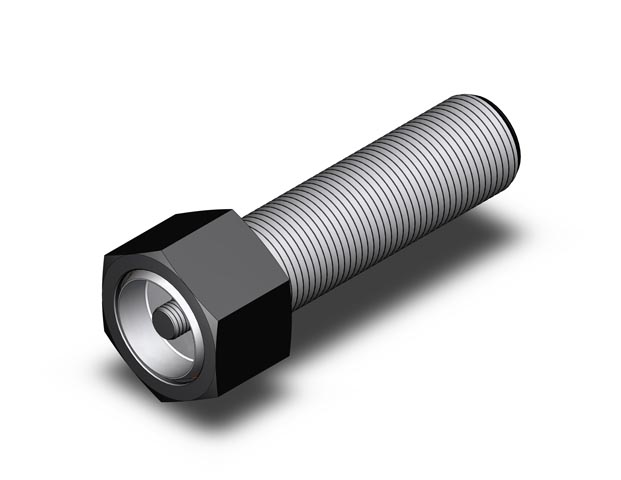

Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BUH) BUH-0750X2.5

Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Inch (BUH). Hex Design Swivot - 3/4-16 X 2-1/2 - Replaceable Pad. The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter . More Information Specifications: Hex in: 1-1/8; Height Head in: 3/4; Length Thread in: 2-1/2; Thread External: 3/4-16; Hex Internal in: 5/16; Swivel Degrees: 20; Standoff in: 1/4; Diameter Ball in: 7/8; Diameter Replaceable Pad in: 3/4; Rating Load lbs: 13,565.
