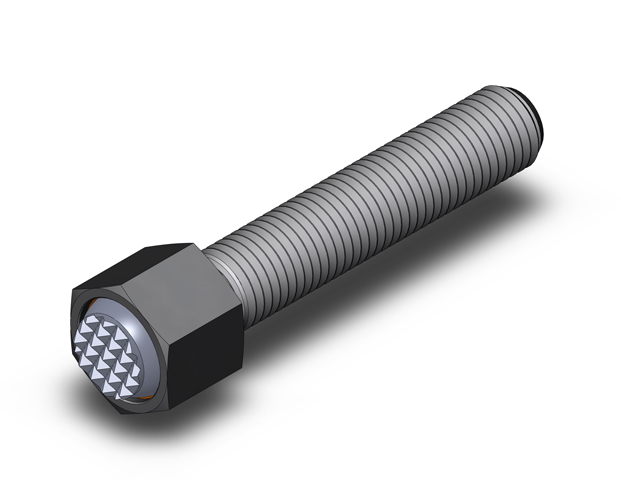

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S) MBUH-16080-S

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S). Hex Design Swivot - M16 X 80 mm - Fine. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat mm: 24; Height Head mm: 19; Length Thread mm: 80; Diameter Contact Surface mm: 16; Height Standoff mm: 4; Thread External: M16x2.0; Degree Swivel Degrees: 40; Hex Internal - Flat mm: 6; Diameter Ball mm: 20; Part No. Ball Only: MBUB-200-S.
