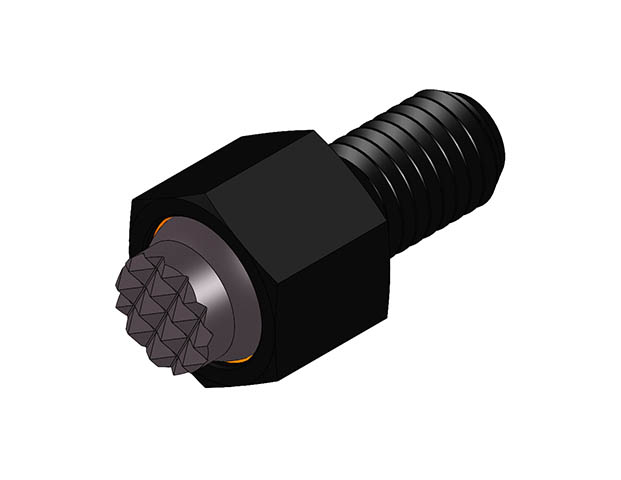

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S) MBUH-12020-S-T

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S). Hex Design Swivot - M12 X 20 mm - Fine - Tall. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat mm: 19; Height Head mm: 15; Length Thread mm: 20; Diameter Contact Surface mm: 12; Height Standoff mm: 6; Thread External: M12x1.75; Degree Swivel Degrees: 45; Hex Internal - Flat mm: 5; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-S-T.
