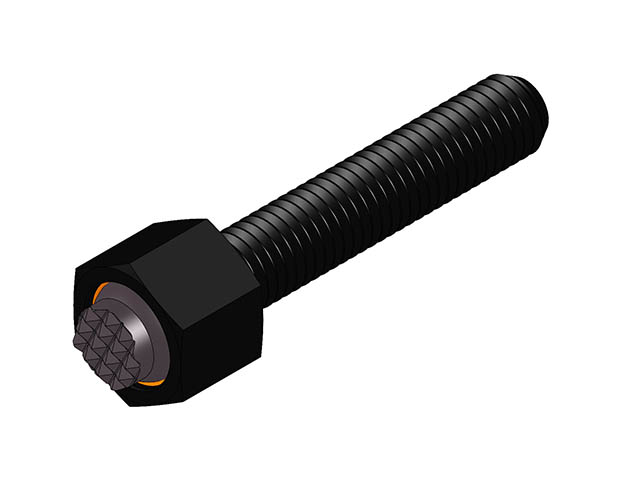

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S) MBUH-10050-S

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S). Hex Design Swivot - M10 X 50 mm - Extra Fine. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat mm: 17; Height Head mm: 13; Length Thread mm: 50; Diameter Contact Surface mm: 10; Height Standoff mm: 4; Thread External: M10x1.5; Degree Swivel Degrees: 42; Hex Internal - Flat mm: 3; Diameter Ball mm: 13; Part No. Ball Only: MBUB-130-S.
