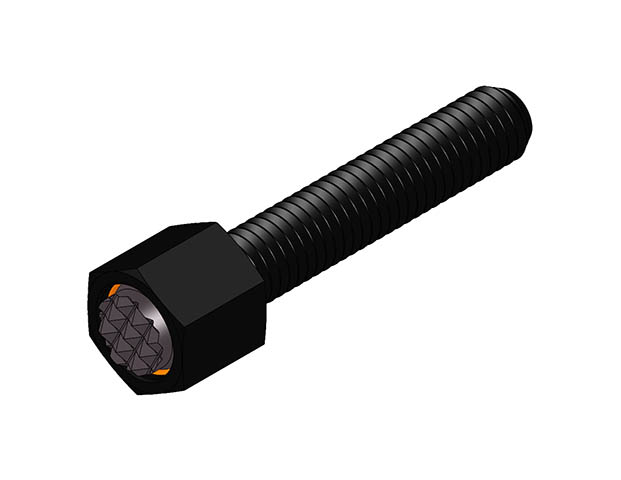

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S) MBUH-08040-S

Hex Head Swivots® Gripper Assembly - Serrated Tool Steel Ball - Metric (MBUH-S). Hex Design Swivot - M8 X 40 mm - Extra Fine. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel, heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flat mm: 13; Height Head mm: 11.5; Length Thread mm: 40; Diameter Contact Surface mm: 8.5; Height Standoff mm: 1.5; Thread External: M8x1.25; Degree Swivel Degrees: 24; Hex Internal - Flat mm: —; Diameter Ball mm: 10; Part No. Ball Only: MBUB-100-S.
