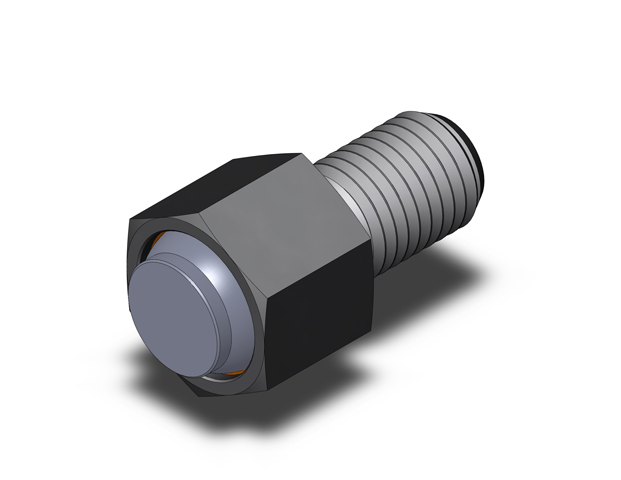

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D) MBUH-16025-D

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D). Hex Design Swivot - M16 X 25 mm - Delrin. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flats mm: 24; Length Body mm: 19; Length Thread mm: 25; Diameter Contact Surface mm: 16; Standoff mm: 4; Thread Internal - Tap: M16x2.0; Degree Swivel Degrees: 40; Hex Internal - Flat lbs: 6; Diameter Ball mm: 20; Part No. Ball Only mm: MBUB-200-D.
