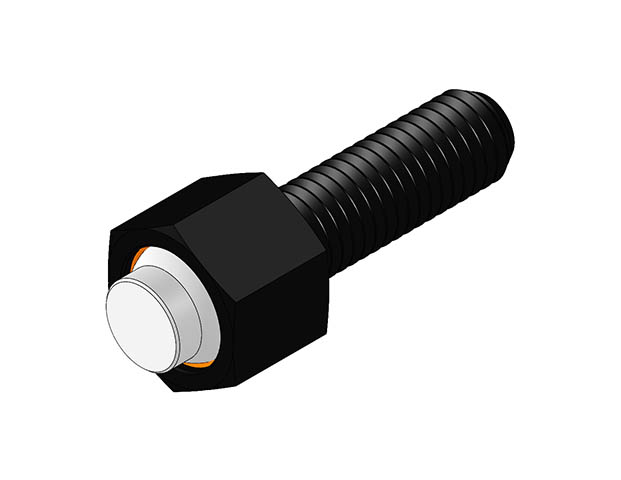

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D) MBUH-10030-D

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D). Hex Design Swivot - M10 X 30 mm - Delrin. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flats mm: 17; Length Body mm: 13; Length Thread mm: 30; Diameter Contact Surface mm: 10; Standoff mm: 4; Thread Internal - Tap: M10x1.5; Degree Swivel Degrees: 42; Hex Internal - Flat lbs: 3; Diameter Ball mm: 13; Part No. Ball Only mm: MBUB-130-D.
