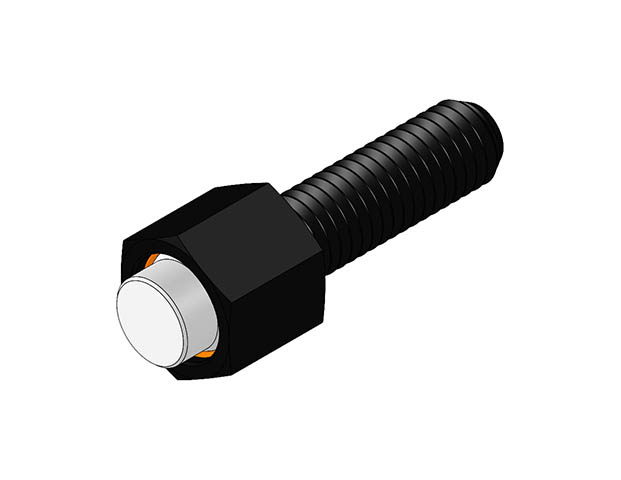

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D) MBUH-08025-D-T

Hex Head Swivots® Gripper Assembly - Flat Delrin Ball - Metric (MBUH-D). Hex Design Swivot - M8 X 25 mm - Delrin - Tall. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flats mm: 13; Length Body mm: 11.5; Length Thread mm: 25; Diameter Contact Surface mm: 8.5; Standoff mm: 3; Thread Internal - Tap: M8x1.25; Degree Swivel Degrees: 24; Hex Internal - Flat lbs: —; Diameter Ball mm: 10; Part No. Ball Only mm: MBUB-100-D-T.
