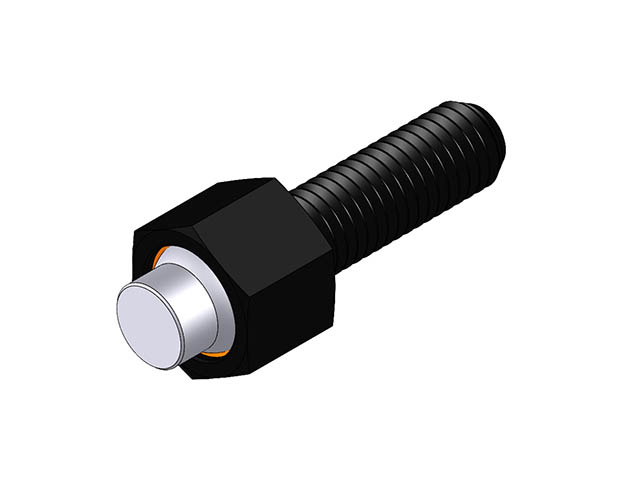

Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBUH-F) MBUH-10030-F-T

Hex Head Swivots® Gripper Assembly - Flat Tool Steel Ball - Metric (MBUH-F). Hex Design Swivot - M10 X 30 mm - Flat - Tall. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Specifications: Hex External - Flats mm: 17; Length Body mm: 13; Length Thread mm: 30; Diameter Contact Surface mm: 10; Standoff mm: 6; Thread External: M10x1.5; Degree Swivel Degrees: 42; Hex Internal - Flat lbs: 3; Diameter Ball mm: 13; Part No. Ball Only: MBUB-130-F-T.
