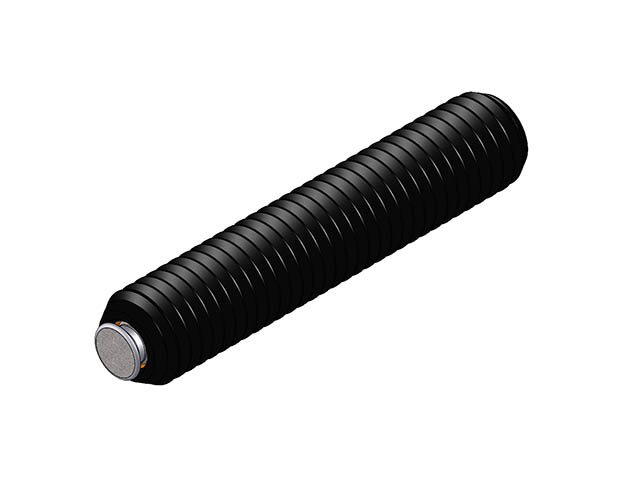

Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MTBU-FC-DS) MTBU-10050-FC-DS

Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MTBU-FC-DS). Threaded Design Swivot - M10 X 1.5 X 50 mm - Diamond Surface. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Specifications: Thread External mm: M10x1.5; Length Thread mm: 50; Diameter Contact Surface mm: 6; Standoff mm: 1.5; Swivel Degrees: 28; Hex Internal - Flat mm: 5; Diameter Ball mm: 5; Part No. Ball Only: MBUB-050-FC-DS; Rating Load lbs: —.
