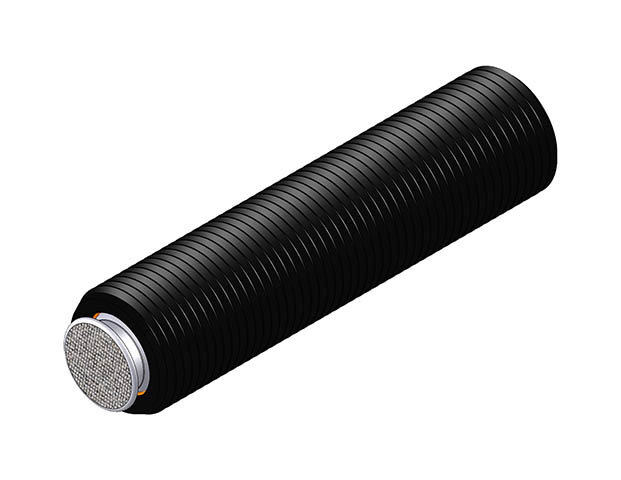

Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Inch (TBU-FC-DS) TBU-0750X3-FC-DS

Full Threaded Swivots® Gripper Assembly - Diamond Surface Cone - Inch (TBU-FC-DS). Threaded Design Swivot - 3/4-16 X 3 - Diamond Surface. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Specifications: Thread External in: 3/4-16; Length Thread in: 3; Diameter Contact Surface in: .551; Height Standoff in: .125; Swivel Degrees: 28; Hex Internal - Flat in: 3/8; Diameter Ball in: 1/2; Part No. Ball Only: BUB-500-FC-DS; Load Rating lbs: 6,131.
