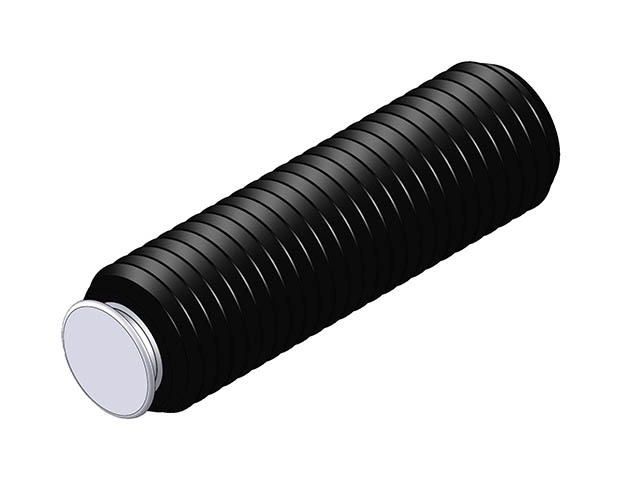

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MTBU-FC) MTBU-24080-FC

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MTBU-FC). Threaded Design Swivot - M24 X 3.0 X 80 Dur mm - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Thread External mm: M24x3.0; Length Thread mm: 80; Diameter Contact Surface mm: 19; Standoff mm: 4.0; Swivel Degrees: 24; Hex Internal - Flat mm: 10; Diameter Ball mm: 15; Part No. Ball Only: MBUB-150-FC; Rating Load lbs: 12,233.
