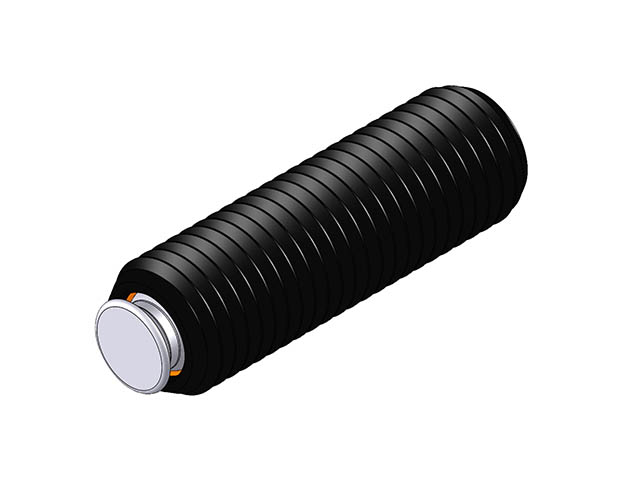

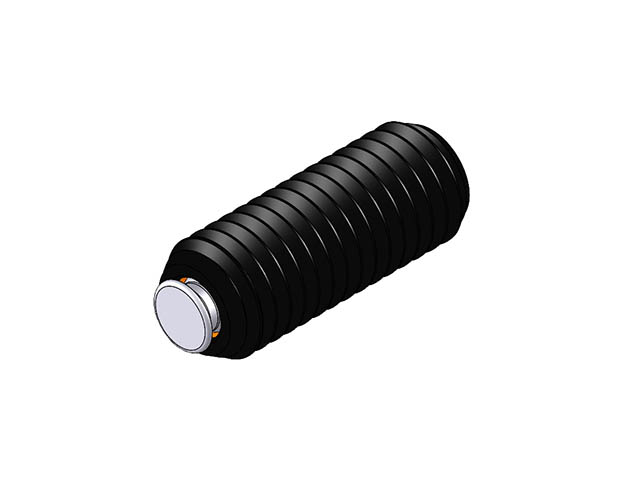

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MTBU-FC) MTBU-16050-FC

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Metric (MTBU-FC). Threaded Design Swivot - M16 X 2.0 X 50 mm - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Thread External mm: M16x2.0; Length Thread mm: 50; Diameter Contact Surface mm: 11; Standoff mm: 3.0; Swivel Degrees: 28; Hex Internal - Flat mm: 8; Diameter Ball mm: 10; Part No. Ball Only: MBUB-100-FC; Rating Load lbs: 5,190.
