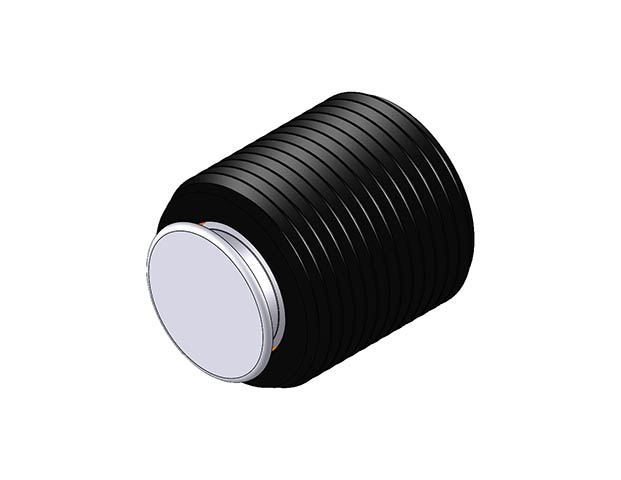

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Inch (TBU-FC) TBU-1108-FC

Full Threaded Swivots® Gripper Assembly - Flat Stainless Steel Cone - Inch (TBU-FC). Threaded Design Swivot - 1-8 X 1 - SS Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 1-8; Length Thread in: 1; Diameter Contact Surface in: .748; Height Standoff in: .156; Swivel Degrees: 32; Hex Internal - Flat in: 3/8; Diameter Ball in: 5/8; Part No. Ball Only: BUB-600-FC; Load Rating lbs: 14,757.
