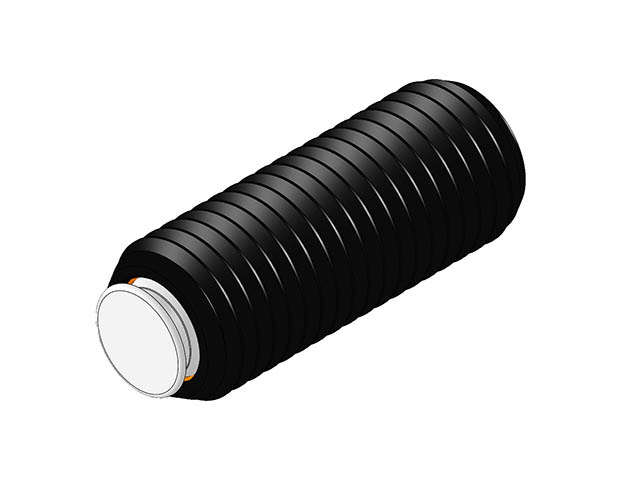

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MTBU-DC) MTBU-20050-DC

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Metric (MTBU-DC). Threaded Design Swivot - M20 X 2.5 X 50 mm - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: M20x2.5; Length Thread mm: 50; Diameter Contact Surface mm: 14; Height Standoff mm: 3.0; Swivel Degrees: 28; Hex Internal - Flat mm: 10; Diameter Ball mm: 13; Part No. Ball Only: MBUB-130-DC.
