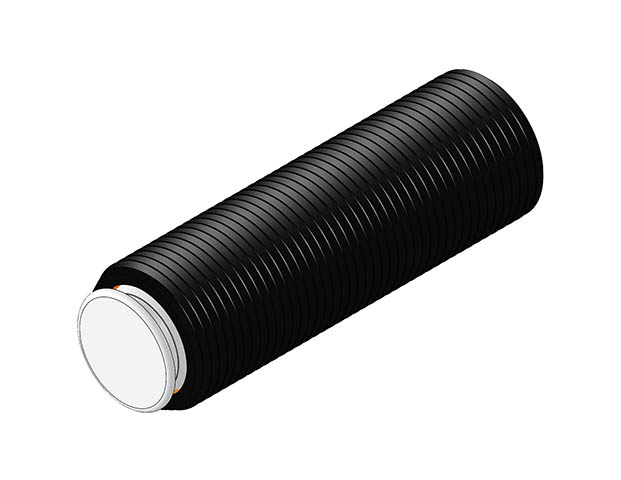

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC) TBU-1114X3-DC

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC). Threaded Design Swivot - 1-14 X 3 - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 1-14; Length Thread in: 3; Diameter Contact Surface in: .827; Height Standoff in: .156; Swivel Degrees: 32; Hex Internal - Flat in: 3/8; Diameter Ball in: 3/4; Part No. Ball Only: BUB-700-DC.
