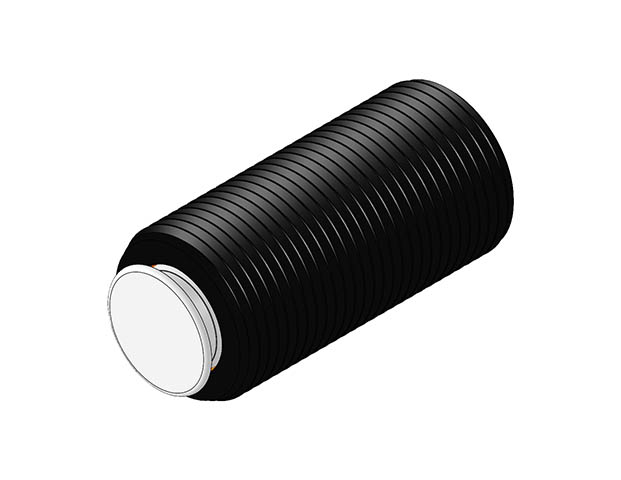

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC) TBU-1108X2-DC

Full Threaded Swivots® Gripper Assembly - Flat Delrin Cone - Inch (TBU-DC). Threaded Design Swivot - 1-8 X 2 - Delrin Cone. The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Specifications: Thread External: 1-8; Length Thread in: 2; Diameter Contact Surface in: .748; Height Standoff in: .156; Swivel Degrees: 32; Hex Internal - Flat in: 3/8; Diameter Ball in: 5/8; Part No. Ball Only: BUB-600-DC.
